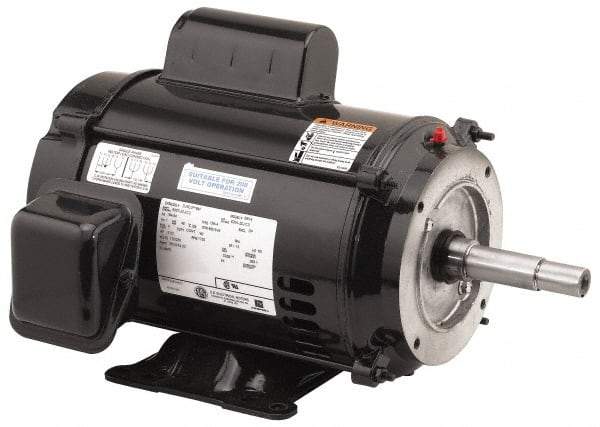

US Motors - 5 hp, ODP Enclosure, No Thermal Protection, 3,450 RPM, 208-230 Volt, 60 Hz, Industrial Electric AC/DC Motor - Size 184 Frame, C-Face/Base Mount, 1 Speed, Ball Bearings, 24.0-23.7 Full Load Amps, F Class Insulation, Reversible
Item #: 87958955
Brand: US Motors
Model #: EJM502B*
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type of Enclosure | ODP |
| Horsepower | 5 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 3450 |
| Voltage | 208-230 |
| Frequency Hz | 60 |
| Frame Size | 184 |
| Mount Type | C-Face/Base |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Full Load Amperage | 24.0-23.7 |
| Insulation Class | F |
| Full Load Efficiency Rating | 88.70 |
| Motor Run Capacitor Micro Farid | 50.00 |
| Motor Run Capacitor Volts | 0 |
| Service Factor Rating | 1.15 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
