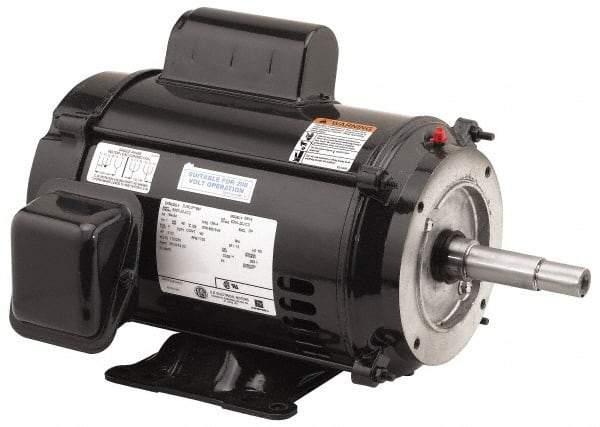

US Motors - 3 hp, ODP Enclosure, No Thermal Protection, 3,450 RPM, 208-230 Volt, 60 Hz, Industrial Electric AC/DC Motor - Size 182 Frame, C-Face/Base Mount, 1 Speed, Ball Bearings, 14.0-13.2 Full Load Amps, B Class Insulation, Reversible
Item #: 87958948
Brand: US Motors
Model #: EJM302B*
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type of Enclosure | ODP |
| Horsepower | 3 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 3450 |
| Voltage | 208-230 |
| Frequency Hz | 60 |
| Frame Size | 182 |
| Mount Type | C-Face/Base |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Full Load Amperage | 14.0-13.2 |
| Insulation Class | B |
| Full Load Efficiency Rating | 85.70 |
| Motor Run Capacitor Micro Farid | 35.00 |
| Motor Run Capacitor Volts | 0 |
| Service Factor Rating | 1.15 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
