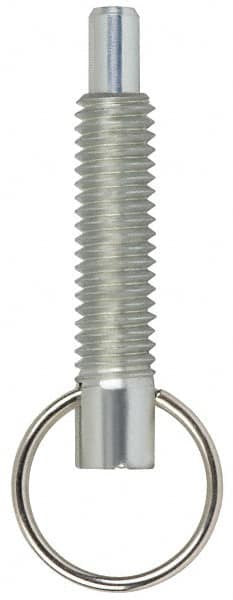

Vlier - M16x2.0, 1.7" Thread Length, 10mm Plunger Diam, 16mm Plunger Projection, 11 N Init to 22 N Final End Force, Stainless Steel Locking Pull Ring Plunger
Item #: 87882098
Brand: Vlier
Model #: SPRM16P
Product Specifications
| Thread Size | M16x2.0 |
| Thread Length (mm) | 43.18 |
| Thread Length (Decimal Inch) | 1.7000 |
| Plunger Type | Locking |
| Body Length (mm) | 60.00 |
| Length Under Head (mm) | 43.00 |
| Plunger Projection (mm) | 16.00 |
| Plunger Diameter (mm) | 10.00 |
| Locking Element | Yes |
| Initial End Force (N) | 11.00 |
| Final End Force (N) | 22.00 |
| Plunger Length (mm) | 60.96 |
| Plunger Length (Decimal Inch) | 2.4000 |
| Ring Diameter (mm) | 25.00 |
| Head Height (Decimal Inch) | 0.7000 |
| Head Height (mm) | 17.78 |
| Material | Stainless Steel |
