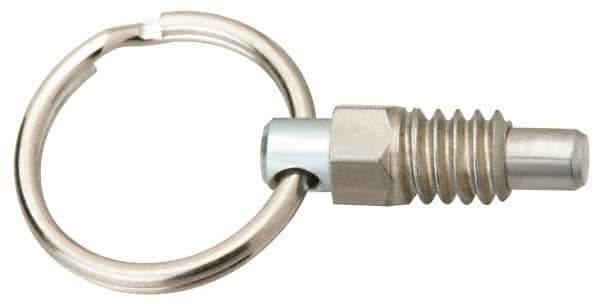

Vlier - M16x2.0, 0.56" Thread Length, 0.38" Plunger Diam, 0.44" Plunger Projection, 1.25 Lb Init to 5 Lb Final End Force, Steel Pull Ring Plunger - 0.69" Len Under Head, 1" Body Len, 1" Ring Diam, 1.31" Plunger Len, 16mm Hex, 0.31" Head Height
Item #: 87881991
Brand: Vlier
Model #: PRSNM16
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | M16x2.0 |
| Thread Length (mm) | 14.22 |
| Thread Length (Decimal Inch) | 0.5600 |
| Plunger Type | Non-Locking |
| Body Length (mm) | 25.00 |
| Body Length (Decimal Inch) | 1.0000 |
| Length Under Head (mm) | 18.00 |
| Length Under Head (Decimal Inch) | 0.6900 |
| Plunger Projection (mm) | 11.00 |
| Plunger Projection (Decimal Inch) | 0.4400 |
| Plunger Diameter (mm) | 10.00 |
| Plunger Diameter (Decimal Inch) | 0.3800 |
| Locking Element | No |
| Initial End Force (N) | 5.60 |
| Initial End Force (Lb.) | 1.25 |
| Final End Force (N) | 22.20 |
| Final End Force (Lb.) | 5.00 |
| Plunger Length (mm) | 33.27 |
| Plunger Length (Decimal Inch) | 1.3100 |
| Ring Diameter (mm) | 25.00 |
| Ring Diameter (Decimal Inch) | 1.0000 |
| Head Height (Decimal Inch) | 0.3100 |
| Head Height (mm) | 7.87 |
| Hex Size (mm) | 16.00 |
| Material | Steel |
