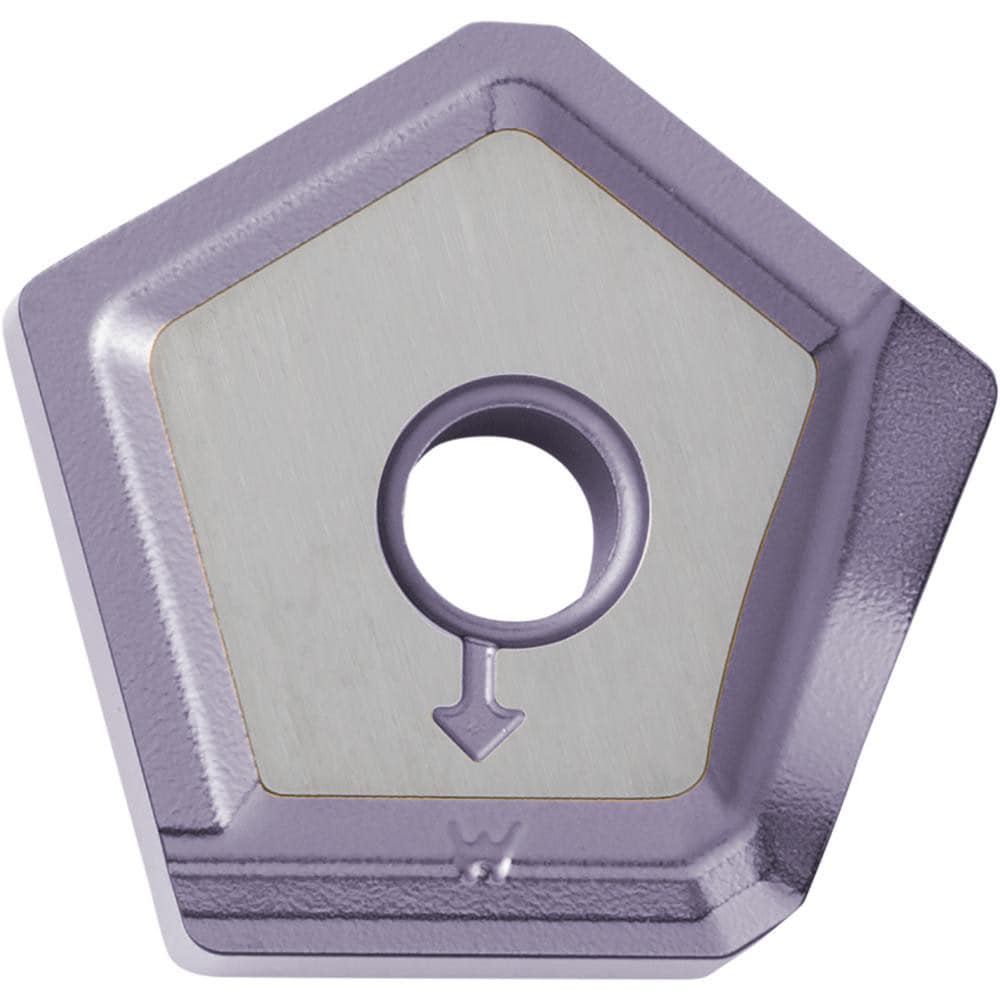

Milling Insert: PNEG1106XNER-W PR1825, Carbide
Item #: 86476306
Brand: Kyocera
Model #: TLT00112
Product Specifications
| Insert Style | PNEG |
| Insert Size | 1106 |
| Insert Material | Carbide |
| Insert Shape | Pentagon |
| Manufacturer Grade | PR1825 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Corner Radius (mm) | 0.00 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2500 |
| Thickness (mm) | 6.3500 |
| Coating/Finish | MEGACOAT NANO EX |
| Thickness (Inch) | 1/4 |
| Insert Hand | Right Hand |
| Series | MFK Milling |
| Coating Process | PVD |
| Rake | Negative |
| Primary Workpiece Material | Mold Steel; Alloy Steel; Carbon Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Austenitic Stainless Steel |
| Secondary Workpiece Material Code | M |
| Ansi Code | PNEG1106XNERWPR1825 |
| Iso Code | PNEG1106XNER-W |
| Manufacturers Catalog Number | PNEG1106XNERWPR1825 |
| Chip Breaker | XNER-W |
| Cutting Direction | Right Hand |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Single or Double Sided Insert | Double |
| Length (mm) | 18.02 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.7095 |
| Country of Origin | Japan |
