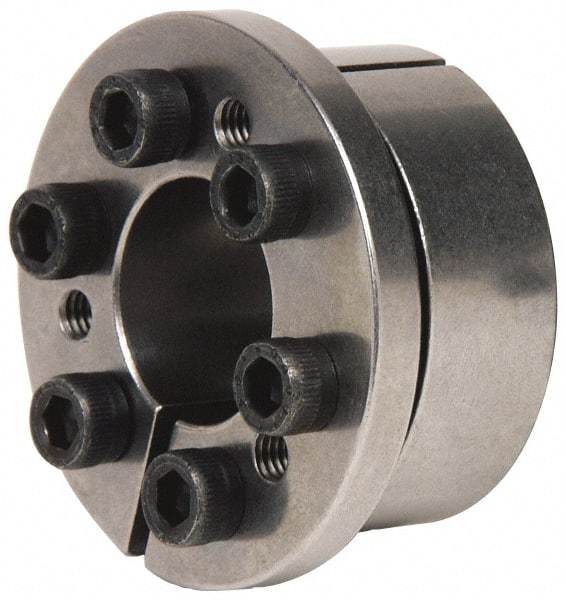

Climax Metal Products - M8 Thread, 55mm Bore Diam, 85mm OD, Shaft Locking Device - 8 Screws, 18,521 Lb Axial Load, 3.681" OAW, 0.787" Thrust Ring Width
Item #: 87794061
Brand: Climax Metal Products
Model #: C133M-55X85
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | M8 |
| Bore Diameter (mm) | 55.000 |
| Outside Diameter (mm) | 85.0000 |
| Thrust Ring Width (Decimal Inch) | 0.787 |
| Overall Width (Decimal Inch) | 3.6810 |
| Axial Load Lbs (Pounds) | 18521 |
| Maximum Torque Foot/Lbs (Pounds) | 1671 |
| Number of Screws | 8.000 |
| Contact Pressure on Hub (psi) | 18644.000 |
| Contact Pressure on Shaft (psi) | 28814.000 |
| Screw Seating Torque (In/Lb) | 360.000 |
