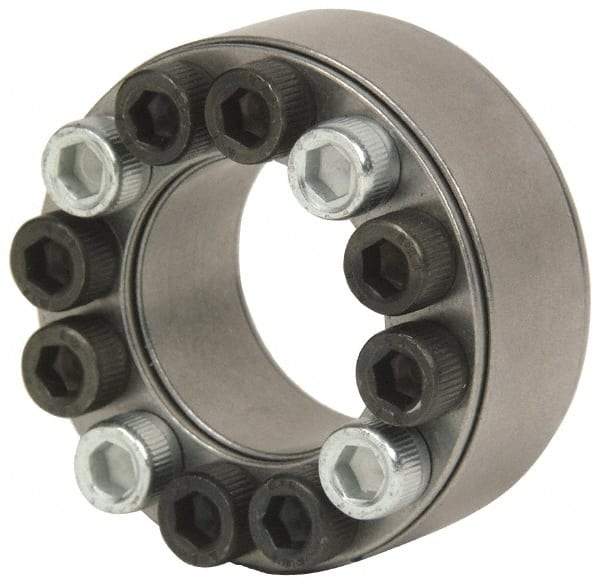

Climax Metal Products - M6 Thread, 28mm Bore Diam, 55mm OD, Shaft Locking Device - 10 Screws, 8,919 Lb Axial Load, 2.165" OAW, 0.669" Thrust Ring Width, 410 Ft/Lb Max Torque
Item #: 87793691
Brand: Climax Metal Products
Model #: C200M-28X55
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | M6 |
| Bore Diameter (mm) | 28.000 |
| Outside Diameter (mm) | 55.0000 |
| Thrust Ring Width (Decimal Inch) | 0.669 |
| Overall Width (Decimal Inch) | 2.1650 |
| Axial Load Lbs (Pounds) | 8919 |
| Maximum Torque (Ft/Lb) | 410 |
| Number of Screws | 10.000 |
| Contact Pressure on Hub (psi) | 16324.000 |
| Contact Pressure on Shaft (psi) | 32065.000 |
| Screw Seating Torque (In/Lb) | 120.000 |
