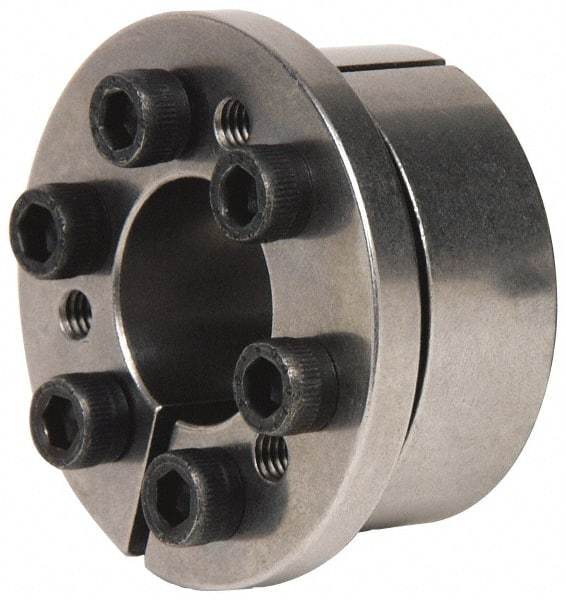

Climax Metal Products - M10 Thread, 3" Bore Diam, 4.724" OD, Shaft Locking Device - 8 Screws, 30,403 Lb Axial Load, 5.079" OAW, 0.945" Thrust Ring Width, 3,800 Ft/Lb Max Torque
Item #: 87793568
Brand: Climax Metal Products
Model #: C133E-300
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | M10 |
| Bore Diameter (Decimal Inch) | 3.0000 |
| Outside Diameter (Decimal Inch) | 4.7240 |
| Thrust Ring Width (Decimal Inch) | 0.945 |
| Overall Width (Decimal Inch) | 5.0790 |
| Axial Load Lbs (Pounds) | 30403 |
| Maximum Torque (Ft/Lb) | 3800 |
| Number of Screws | 8.000 |
| Contact Pressure on Hub (psi) | 18066.000 |
| Contact Pressure on Shaft (psi) | 28450.000 |
| Screw Seating Torque (In/Lb) | 732.000 |
