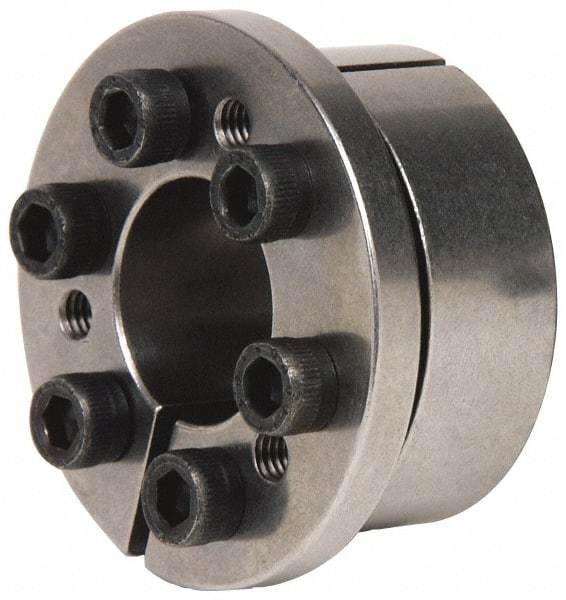

Climax Metal Products - M6 Thread, 1" Bore Diam, 1.969" OD, Shaft Locking Device - 6 Screws, 7,518 Lb Axial Load, 2.224" OAW, 0.669" Thrust Ring Width, 313 Ft/Lb Max Torque
Item #: 87793352
Brand: Climax Metal Products
Model #: C133E-100
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | M6 |
| Bore Diameter (Decimal Inch) | 1.0000 |
| Outside Diameter (Decimal Inch) | 1.9690 |
| Thrust Ring Width (Decimal Inch) | 0.669 |
| Overall Width (Decimal Inch) | 2.2240 |
| Axial Load Lbs (Pounds) | 7518 |
| Maximum Torque (Ft/Lb) | 313 |
| Number of Screws | 6.000 |
| Contact Pressure on Hub (psi) | 15136.000 |
| Contact Pressure on Shaft (psi) | 29795.000 |
| Screw Seating Torque (In/Lb) | 156.000 |
