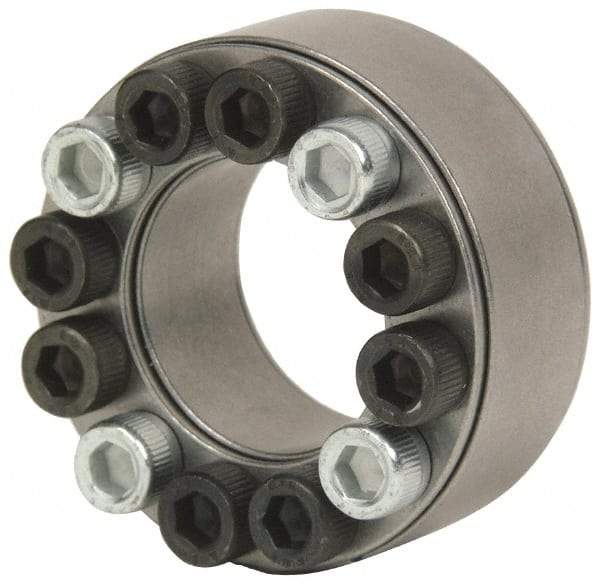

Climax Metal Products - M10 Thread, 3-1/2" Bore Diam, 5.118" OD, Shaft Locking Device - 16 Screws, 41,793 Lb Axial Load, 5.118" OAW, 0.945" Thrust Ring Width
Item #: 87793287
Brand: Climax Metal Products
Model #: C200E-350
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | M10 |
| Bore Diameter (Decimal Inch) | 3.5000 |
| Outside Diameter (Decimal Inch) | 5.1180 |
| Thrust Ring Width (Decimal Inch) | 0.945 |
| Overall Width (Decimal Inch) | 5.1180 |
| Axial Load Lbs (Pounds) | 41793 |
| Maximum Torque Foot/Lbs (Pounds) | 6095 |
| Number of Screws | 16.000 |
| Contact Pressure on Hub (psi) | 22924.000 |
| Contact Pressure on Shaft (psi) | 33522.000 |
| Screw Seating Torque (In/Lb) | 612.000 |
