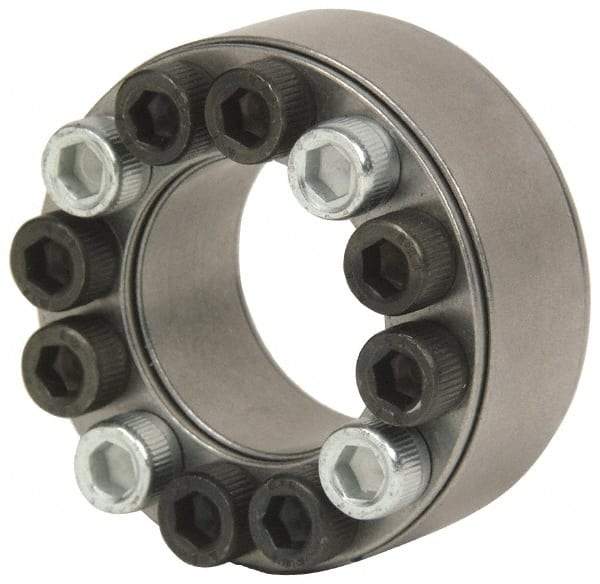

Climax Metal Products - M10 Thread, 2-7/8" Bore Diam, 4.528" OD, Shaft Locking Device - 14 Screws, 36,569 Lb Axial Load, 4.528" OAW, 0.945" Thrust Ring Width
Item #: 87793212
Brand: Climax Metal Products
Model #: C200E-287
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | M10 |
| Bore Diameter (Decimal Inch) | 2.8750 |
| Outside Diameter (Decimal Inch) | 4.5280 |
| Thrust Ring Width (Decimal Inch) | 0.945 |
| Overall Width (Decimal Inch) | 4.5280 |
| Axial Load Lbs (Pounds) | 36569 |
| Maximum Torque Foot/Lbs (Pounds) | 4381 |
| Number of Screws | 14.000 |
| Contact Pressure on Hub (psi) | 22675.000 |
| Contact Pressure on Shaft (psi) | 35708.000 |
| Screw Seating Torque (In/Lb) | 612.000 |
