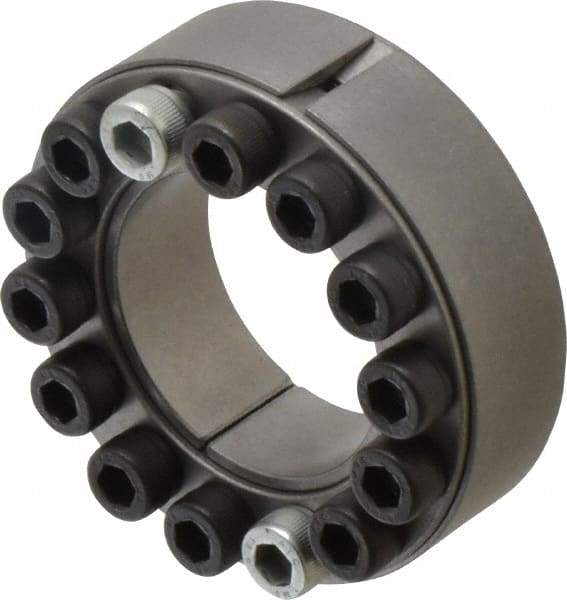

Climax Metal Products - M6 Thread, 1-1/2" Bore Diam, 2.559" OD, Shaft Locking Device - 14 Screws, 12,486 Lb Axial Load, 2.559" OAW, 0.669" Thrust Ring Width, 780 Ft/Lb Max Torque
Item #: 87793071
Brand: Climax Metal Products
Model #: C200E-150
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | M6 |
| Bore Diameter (Decimal Inch) | 1.5000 |
| Outside Diameter (Decimal Inch) | 2.5590 |
| Thrust Ring Width (Decimal Inch) | 0.669 |
| Overall Width (Decimal Inch) | 2.5590 |
| Axial Load Lbs (Pounds) | 12486 |
| Maximum Torque (Ft/Lb) | 780 |
| Number of Screws | 14.000 |
| Contact Pressure on Hub (psi) | 19338.000 |
| Contact Pressure on Shaft (psi) | 32991.000 |
| Screw Seating Torque (In/Lb) | 120.000 |
