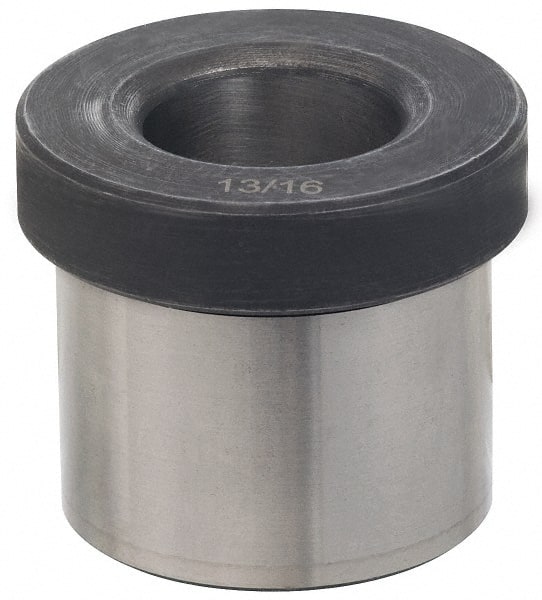

Boneham - Type H, No. 9 Inside Diam, Head, Press Fit Drill Bushing
Item #: 07609860
Brand: Boneham
Model #: CB00001324
Features and Benefits
Head Press Fit
| Product Specifications | |
|---|---|
| Bushing Industry Code | H |
| Inside Diameter (Wire) | #9 |
| Inside Diameter (Decimal Inch) | 0.1960 |
| Body Outside Diameter (Inch) | 1/2 |
| Length Under Head (Inch) | 1 |
| Renewable Bushing | No |
| Installation Method | Press-Fit |
| Head or Headless | Head |
| Head Outside Diameter (Inch) | 39/64 |
| Head Height (Inch) | 7/32 |
| Bushing Material | Steel |
| Counterbored | No |
| Inside Diameter Tolerance (Decimal Inch) | +0.0001 to +0.0004 |
