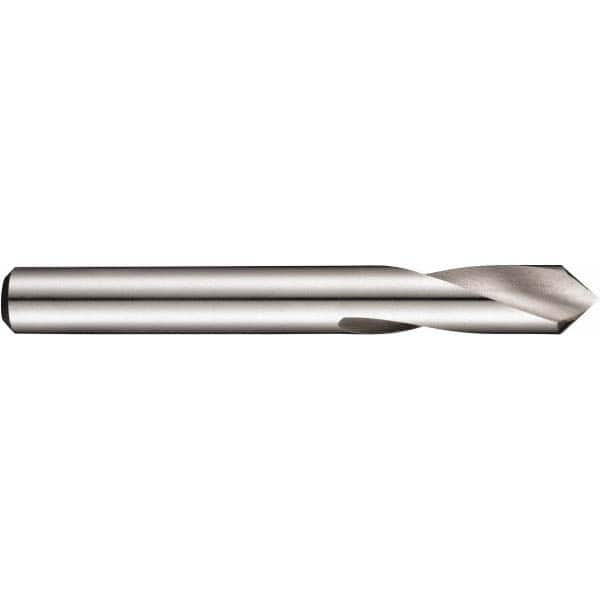

DORMER - 12mm Body Diam, 90°, 102mm OAL, High Speed Steel Spotting Drill
Item #: 65624702
Brand: DORMER
Model #: 0019184
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Body Diameter (mm) | 12.00 |
| Body Diameter (Decimal Inch) | 0.4724 |
| Drill Point Angle | 90 |
| Spotting Drill Material | High Speed Steel |
| Spotting Drill Finish/Coating | Bright |
| Overall Length (mm) | 102.00 |
| Flute Length (mm) | 40.00 |
| Flute Length (Decimal Inch) | 1.5748 |
| Shank Diameter (mm) | 12.0000 |
| Number of Flutes | 2 |
| Length Designation | Short |
| Cutting Direction | Right Hand |
| Tool Application | Spotting |
| Insertable Cutter Head | No |
| Material Application | Alloy Steel; Aluminum; Aluminum Alloys; Brass; Bronze; Carbon Steel; Cast Iron; Cermets; Copper; Copper Alloys; Free Machining Stainless Steel; Hardened Steel; Magnesium; Nickel; Nickel Alloys; Plastics; Stainless Steel; Steel |
| Material Application2 | Structural Steel; Thermoplastics; Thermosetting Plastics; Titanium; Titanium Alloys |
| Series/List | A122 |
