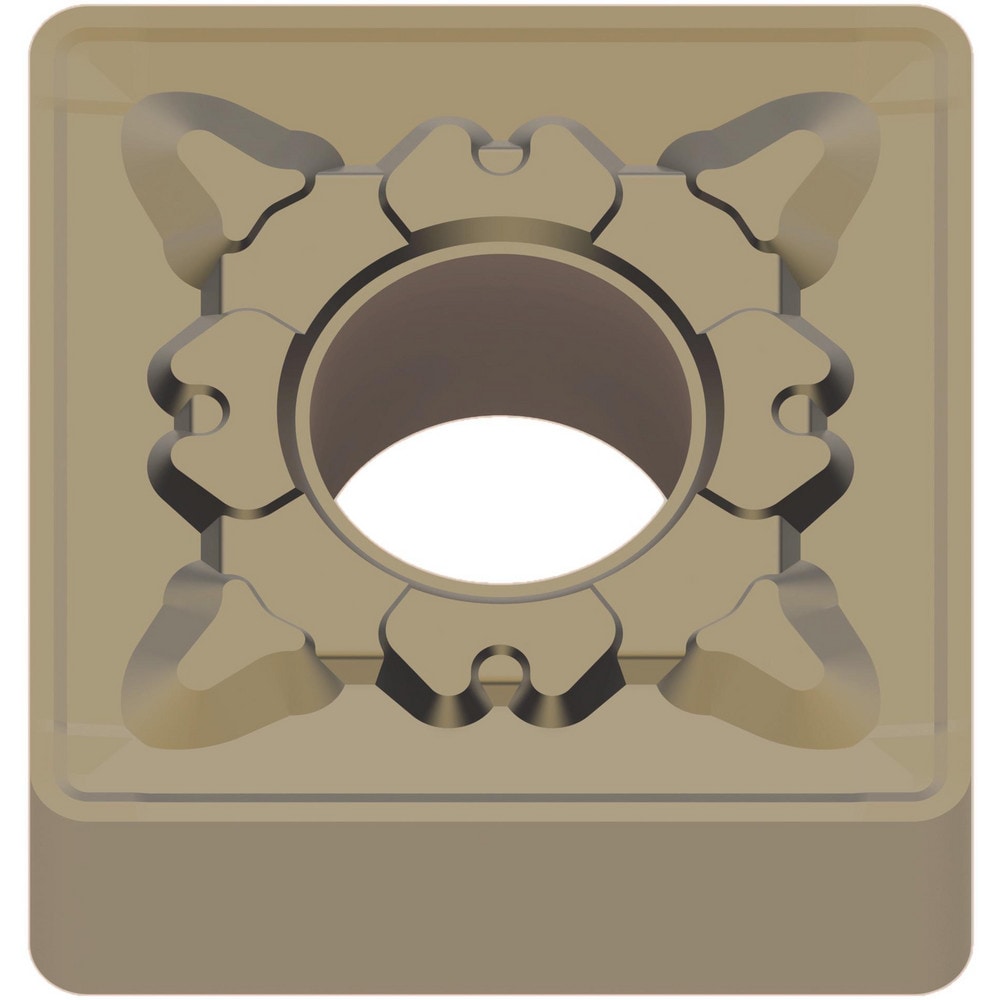

Turning Insert: SNMG433RM MC7025, Carbide

Turning Insert: SNMG433RM MC7025, Carbide


Item #: 03371580
Brand: Mitsubishi
Model #: 643356

Product Specifications

ANSI Insert Code SNMG433
ISO Insert Code SNMG120412
Relief Angle 0
Insert Style SNMG
Corner Radius (mm) 1.20
Corner Radius (Inch) 3/64
Corner Radius (Decimal Inch) 0.0469
Included Angle 90
Manufacturer Grade MC7025
Coating/Finish CVD
Insert Hand Neutral
Insert Thickness (Inch) 3/16
Insert Thickness 4.76
Insert Thickness (Decimal Inch) 0.1875
Inscribed Circle (Decimal Inch) 0.5000
Inscribed Circle (Inch) 1/2
Inscribed Circle (mm) 12.70
Insert Material Carbide
Insert Shape S - Square
Chip Breaker Operation Medium Machining; Roughing
Grade Characteristics Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness
Side Clearance Negative
Number Of Cutting Edges 8
Insert Shape Code S
Clearance Code N
Tolerance Code M
Primary Workpiece Material Code M
Chip Breaker RM
ANSI Size Code 433
ISO Size Code 120412
UNSPSC Code 23242105
Insert Size Code 4
$17.56
