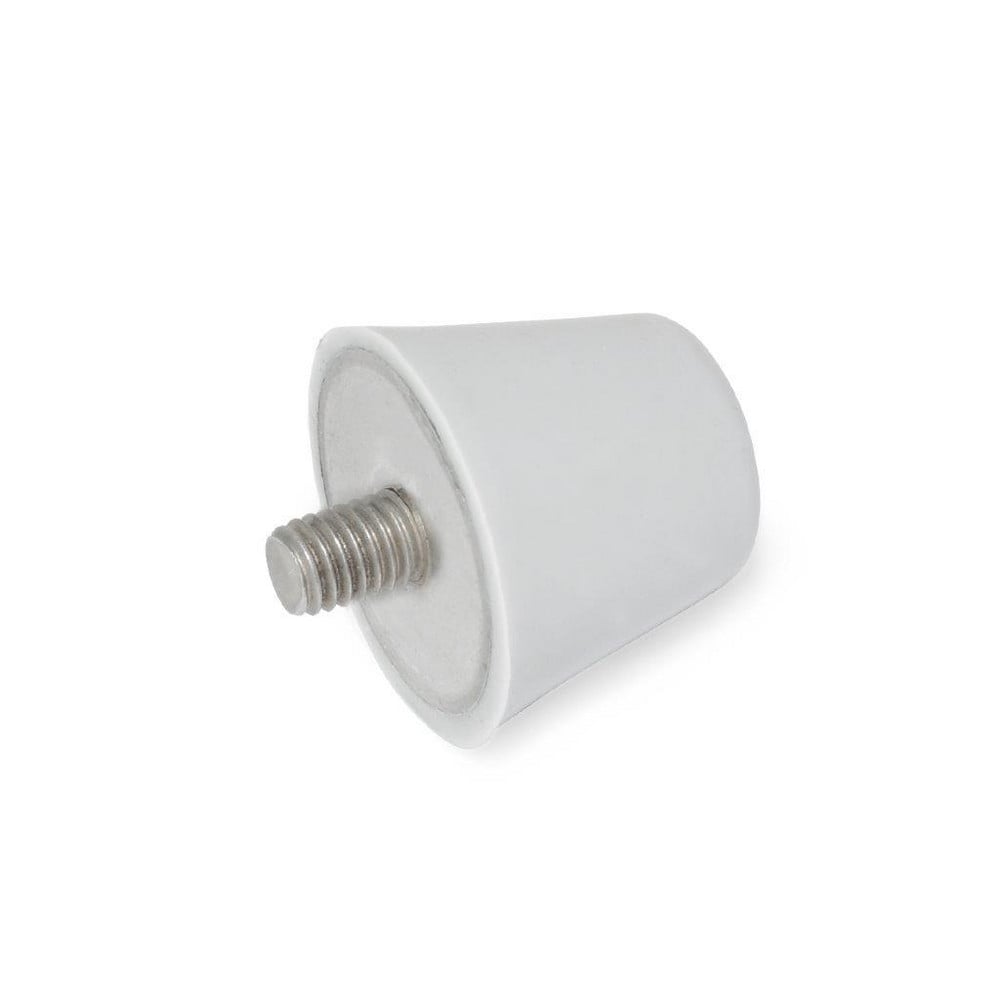

Vibration Isolators; Isolator Type: Plate/Stud; Insert Material: Stainless Steel; Isolator Material: Silicon Rubber; Maximum Load Capacity: 900.00 N; Top Diameter: 38.00; Bottom Diameter: 25; Thread Size: 5/16-18; Overall Width: 38 mm
Item #: 71813166
Brand: J.W. Winco
Model #: 256-38-5/16X18-32-55-GR
Product Specifications
| Isolator Type | Plate/Stud |
| Insert Material | Stainless Steel |
| Isolator Material | Silicon Rubber |
| Maximum Load Capacity | 900.00 N |
| Top Diameter | 38.00 |
| Bottom Diameter | 25 |
| Thread Size | 5/16-18 |
| Overall Width | 38 mm |
| Overall Diameter | 38 mm |
| Thread Length (Decimal Inch) | 1.2600 |
| Deflection | 0.3100 |
| Hardness Rating | Shore 55A |
| Mount Type | Threaded Stud |
| Shape | Round |
| Thread Pitch | 1.411 mm |
| Thread Standard | UNC |
| Height (Decimal Inch) | 64 mm |
| UNSPSC Code | 23153130 |
| Isolator Type | Plate/Stud |
| Insert Material | Stainless Steel |
| Isolator Material | Silicon Rubber |
| Maximum Load Capacity | 900.00 N |
| Top Diameter | 38.00 |
| Bottom Diameter | 25 |
| Thread Size | 5/16-18 |
| Overall Width | 38 mm |
| Overall Diameter | 38 mm |
| Thread Length (Decimal Inch) | 1.2600 |
| Deflection | 0.3100 |
| Hardness Rating | Shore 55A |
| Mount Type | Threaded Stud |
| Shape | Round |
| Thread Pitch | 1.411 mm |
| Thread Standard | UNC |
| Height (Decimal Inch) | 64 mm |
| UNSPSC Code | 23153130 |
| MSC Part # | 71813166 |
| Mfr Part # | 256-38-5/16X18-32-55-GR |
| Country of Origin Country of Origin is subject to change | Hungary |
