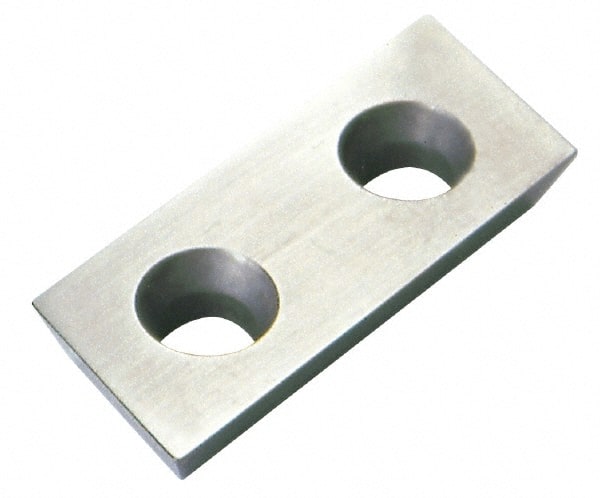

BEHW250308R-P IN15K Carbide Milling Insert Uncoated, 1″ Long x 0.145″ Thick x 0.438″ Wide
Item #: 86482783
Brand: Ingersoll Cutting Tools
Model #: 5803527
Product Specifications
| Insert Style | BEHW |
| Insert Size | 250308 |
| Insert Material | Solid Carbide |
| Material Grade | C1; C2 |
| Manufacturer Grade | IN15K |
| Thickness Range (Decimal Inch) | 0.1250 to 0.1500 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Length Range (Decimal Inch) | 1.0000 |
| Insert Hand | Right Hand |
| Relief Angle | 20.00 |
| Iso Code | BEHW250308R-P IN15K |
| Chip Breaker | P |
| Shape | Parallelogram |
| Coating/Finish | Uncoated |
| Included Angle Degree | 82 |
| Width (Decimal Inch - 4 Decimals) | 0.4380 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1450 |
| Length (Decimal Inch - 4 Decimals) | 1.0000 |
