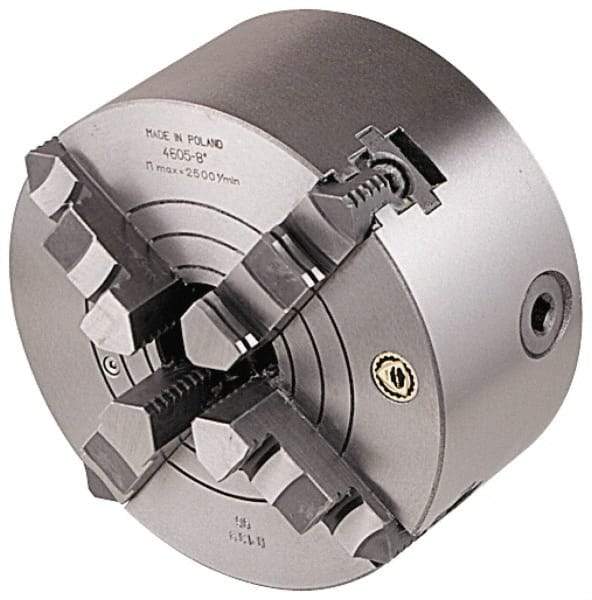

Bison - 4 Jaws, 16" Diam, Combination Independent & Self Centering Manual Lathe Chuck - Plain Back Mount Spindle, Reversible, 1,000 Max RPM, 5.35" Through Hole Diam, Cast Iron
Item #: 86439841
Brand: Bison
Model #: 7-848-1600
Exact Tooling IR#: 04
Features and Benefits
Combination independent and self-centering chucks allow each jaw to be operated independently or move simultaneously as a self-centering scroll chuck.
Cast iron also called semi-steel is the industry standard for chuck body material.
| Product Specifications | |
|---|---|
| Chuck Type | Combination Independent & Self-Centering |
| Nominal Chuck Size | 16 |
| Number of Jaws | 4 |
| Mount | Plain Back |
| Through-Hole Diameter (Decimal Inch) | 5.3500 |
| Body Material | Cast Iron (Semi-Steel) |
| Reversible Jaws | Reversible Jaws |
| Number of Jaw Pieces | One-Piece |
| Chuck Diameter (Inch) | 15-3/4 |
| Minimum Jaw Capacity (Decimal Inch) | 0.5900 |
| Maximum Jaw Capacity (Inch) | 15-3/4 |
| Adjustable | No |
| Body Length (Decimal Inch) | 4.8400 |
| Maximum RPM | 1000 |
| Includes | Set of Hard Solid Reversible Jaws; Set of Mounting Screws; Wrench |
