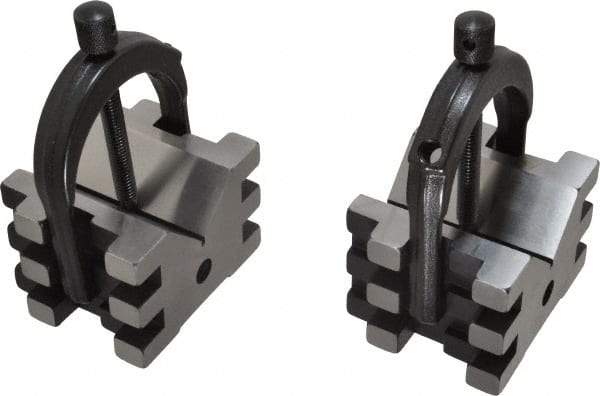

Starrett - 2" Max Capacity, 45 and 90° Angle, Hardened Steel V-Block - 2-1/2" Long x 3" Wide x 2" High, Sold as Matched Pair
Item #: 86420684
Brand: Starrett
Model #: 52592
Exact Tooling IR#: 04
Features and Benefits
V-blocks are used for holding cylindrical components for detecting and inspecting. They are designed with a 90-degree channel rotated 45-degrees from the sides, forming a V-shaped channel in the top. V-Blocks are commonly available in pairs. Some come with magnets for magnetic workholding applications.
| Product Specifications | |
|---|---|
| Type | V-Block |
| Sold As | Matched Pair |
| Overall Length (mm) | 63.50 |
| Overall Length (Inch) | 2-1/2 |
| Overall Width (mm) | 76.20 |
| Overall Width (Inch) | 3 |
| Overall Height (mm) | 50.80 |
| Overall Height (Inch) | 2 |
| V Angle | 45.00; 90.00 |
| Maximum Capacity of V (Inch) | 2 |
| Material | Hardened Steel |
| Magnetic | No |
| Includes | (2) Clamps |
