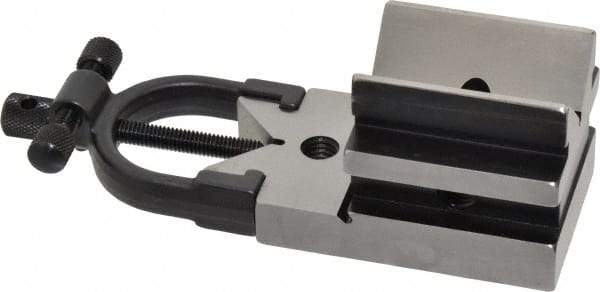

Starrett - 1-5/16" Max Capacity, 90° Angle, Hardened Steel V-Block - 3-15/32" Long x 1-57/64" Wide x 1-7/8" High, Sold as Individual
Item #: 86420650
Brand: Starrett
Model #: 52588
Exact Tooling IR#: 04
Features and Benefits
V-blocks are used for holding cylindrical components for detecting and inspecting. They are designed with a 90-degree channel rotated 45-degrees from the sides, forming a V-shaped channel in the top. V-Blocks are commonly available in pairs. Some come with magnets for magnetic workholding applications.
| Product Specifications | |
|---|---|
| Type | V-Block |
| Sold As | Individual |
| Overall Length (mm) | 88.11 |
| Overall Length (Inch) | 3-15/32 |
| Overall Length (Decimal Inch) | 3.4688 |
| Overall Width (mm) | 48.02 |
| Overall Width (Inch) | 1-57/64 |
| Overall Width (Decimal Inch) | 1.8906 |
| Overall Height (mm) | 47.63 |
| Overall Height (Decimal Inch) | 1.8750 |
| Overall Height (Inch) | 1-7/8 |
| V Angle | 90.00 |
| Maximum Capacity of V (mm) | 33.34 |
| Maximum Capacity of V (Inch) | 1-5/16 |
| Material | Hardened Steel |
| Magnetic | No |
| Includes | Clamp |
