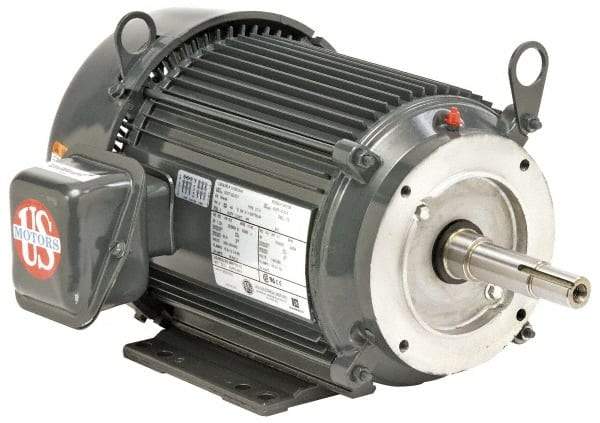

US Motors - 5 hp, TEFC Enclosure, No Thermal Protection, 1,750 RPM, 575 Volt, 60 Hz, Three Phase Premium Efficient Motor - Size 184 Frame, Rigid Mount, 1 Speed, Ball Bearings, 5 Full Load Amps, F Class Insulation, Reversible
Item #: 86352150
Brand: US Motors
Model #: UJ5P2GM
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Three Phase Premium Efficient |
| Type of Enclosure | TEFC |
| Horsepower | 5 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 1750 |
| Voltage | 575 |
| Frequency Hz | 60 |
| Frame Size | 184 |
| Mount Type | Rigid |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Applications | Special Application |
| Full Load Amperage | 5 |
| Insulation Class | F |
| Frame Material | Aluminum |
| Overall Length (Decimal Inch) | 17.7500 |
| Full Load Efficiency Rating | 89.5 |
| Service Factor Rating | 1.25 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
