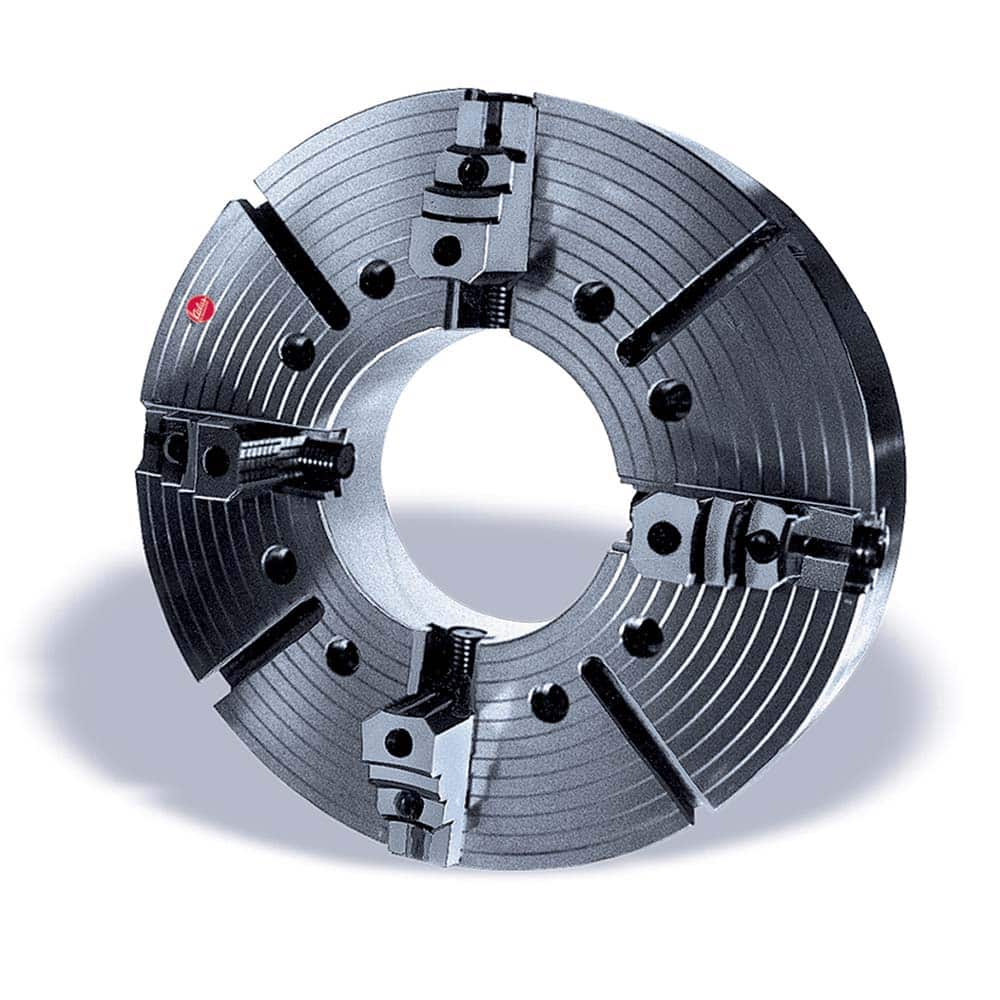

Atlas Workholding - Manual Lathe Chucks; Chuck Type: Independent ; Nominal Chuck Size: 21 ; Number of Jaws: 4 ; Mount: A2-15 ; Through-Hole Diameter (Decimal Inch): 7.3000 ; Body Material: Forged Steel
Item #: 86253150
Brand: Atlas Workholding
Model #: 2143-2A15EX
Product Specifications
Manual Lathe Chucks; Chuck Type: Independent ; Nominal Chuck Size: 21 ; Number of Jaws: 4 ; Mount: A2-15 ; Through-Hole Diameter (Decimal Inch): 7.3000 ; Body Material: Forged Steel
| Chuck Type | Independent |
| Nominal Chuck Size | 21 |
| Number of Jaws | 4 |
| Mount | A2-15 |
| Through-Hole Diameter (Decimal Inch) | 7.3000 |
| Body Material | Forged Steel |
| Reversible Jaws | Nonreversible Jaws |
| Number of Jaw Pieces | Two-Piece |
| Chuck Diameter (Decimal Inch) | 21.0000 |
| Series | 432 EX |
| Jaw Height (Decimal Inch) | 3.2600 |
| Adjustable | Yes |
| Jaw Type | Master Jaws; Top Jaws |
| Body Length (Decimal Inch) | 5.7500 |
| Maximum RPM | 1000 |
| Includes | Mounting Plate |
