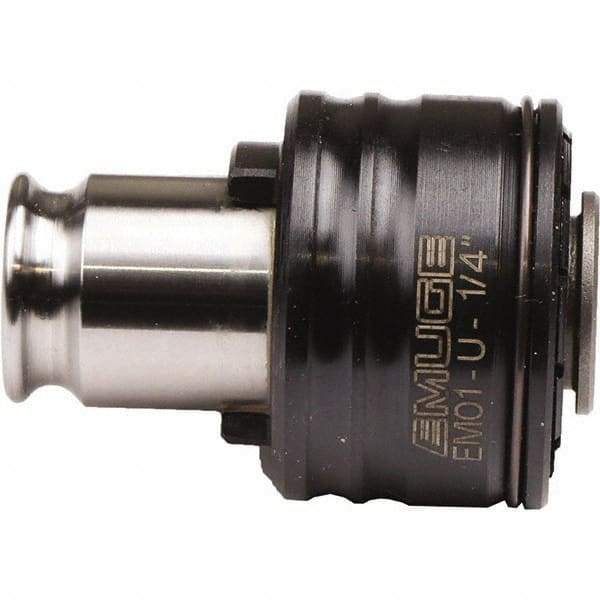

Emuge - 0.1575" Tap Shank Diam, 0.1181" Tap Square Size, #1 Tapping Adapter - 63/64" Projection, 0.9055" Tap Depth, 1.8504" OAL, 3/4" Shank OD, Through Coolant, Series EM01-U
Item #: 86086477
Brand: Emuge
Model #: F0571103
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Adapter Size | 1 |
| Tap Shank Diameter (mm) | 4.00 |
| Tap Shank Diameter (Decimal Inch) | 0.1575 |
| Tap Square Size (mm) | 3.00 |
| Tap Square Size (Decimal Inch) | 0.1181 |
| Quick Change | Yes |
| Projection (mm) | 25.00 |
| Projection (Decimal Inch) | 0.9843 |
| Tap Depth (mm) | 23.00 |
| Tap Depth (Decimal Inch) | 0.9055 |
| Series | EM01-U |
| Overall Length (mm) | 47.00 |
| Overall Length (Decimal Inch) | 1.8504 |
| Flange Diameter (mm) | 33.00 |
| Flange Diameter (Decimal Inch) | 1.2992 |
| Outside Shank Diameter (mm) | 19.00 |
| Outside Shank Diameter (Decimal Inch) | 0.7480 |
| Through Coolant | Yes |
| PSC Code | 5136 |
