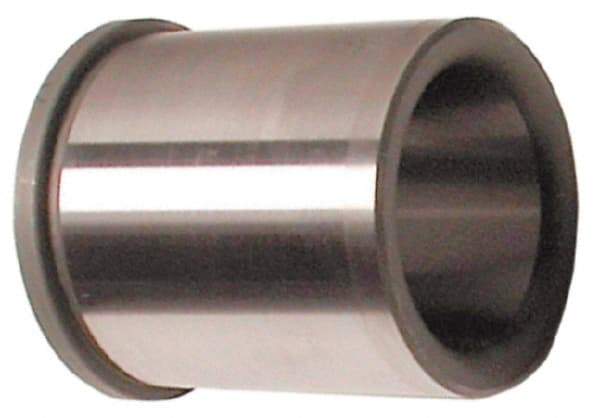

Gibraltar - 7/8" ID x 7/8" OAL, Steel, Die & Mold Shoulder Bushing - Shoulder, 1-1/4" Bottom OD, 1.427" Top OD
Item #: 85936193
Brand: Gibraltar
Exact Tooling IR#: 04
Features and Benefits
Steel is made up of an iron and carbon. It offers high tensile strength and corrosion resistance, but may offer some vibration during an operation.
| Product Specifications | |
|---|---|
| Material | Steel |
| Inside Diameter (Decimal Inch) | 0.8755 |
| Overall Length (Inch) | 7/8 |
| Body Type | Shoulder |
| Bottom Outside Diameter (Decimal Inch) | 1.2505 |
| Top Outside Diameter (Decimal Inch) | 1.4270 |
| Attachment Method | Press-Fit |
| Lubrication Type | Non-Self Lubricating |
| Bushing Type | Friction |
| Head Diameter (Inch) | 1-7/16 |
| Head Diameter (Decimal Inch) | 1.4375 |
| Head Height (Inch) | 3/16 |
