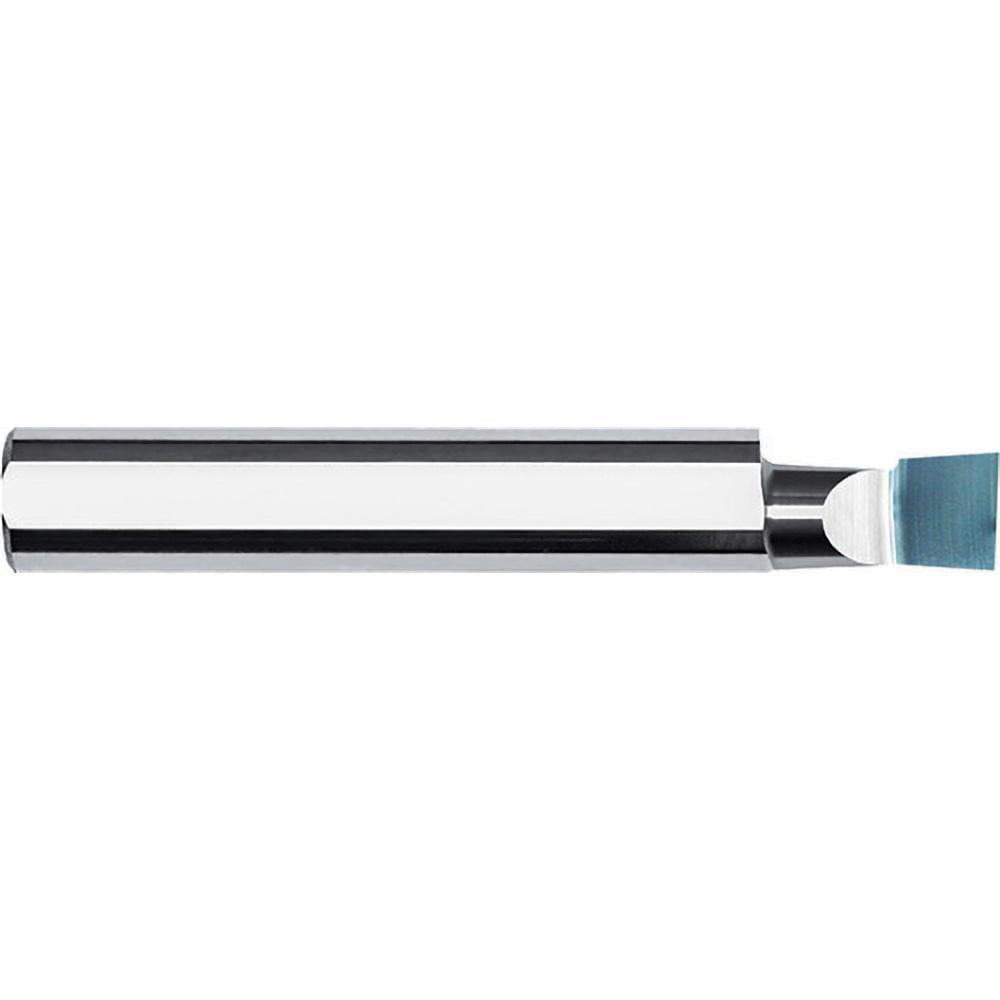

Boring Bar: 9/64" Min Bore Dia, 0.7000" Max Bore Depth, Left Hand, 3/16" Shank Dia, Micrograin Solid Carbide
Item #: 09752122
Brand: Internal Tool
Model #: 10-1195-LH
Product Specifications
| Boring Bar Type | Boring |
| Cutting Direction | Left Hand |
| Minimum Bore Diameter (Decimal Inch) | 0.1400 |
| Material | Solid Carbide |
| Material Grade | Micrograin |
| Maximum Bore Depth (Decimal Inch) | 0.7000 |
| Projection (Decimal Inch) | 0.7000 |
| Shank Diameter (Inch) | 3/16 |
| Overall Length (Inch) | 2-1/2 |
| Bar End Angle | 1.5 |
| Series | 10 |
| Minimum Bore Diameter (Inch) | 9/64 |
| Overall Length (Decimal Inch) | 2.5000 |
| Primary Workpiece Material | Universal |
| Relief Angle | 4 |
| UNSPSC Code | 23241601 |
