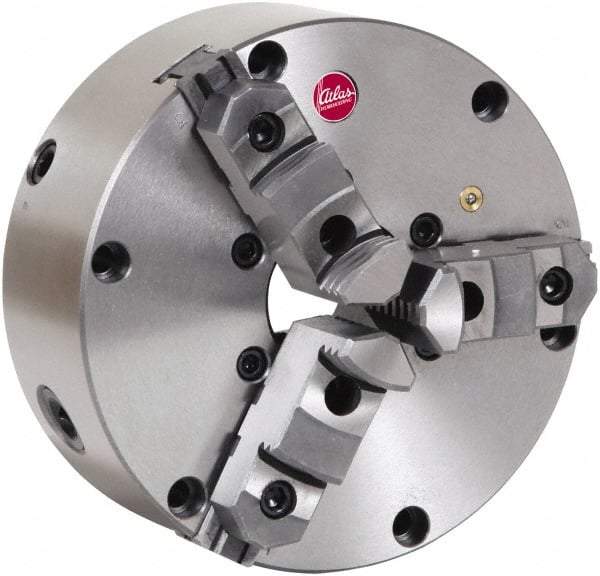

Atlas Workholding - 3 Jaws, 12" Diam, Self Centering Manual Lathe Chuck - Plain Back Mount Spindle, Adjustable, Reversible, 2,000 Max RPM, 3.285" Through Hole Diam, Cast Iron
Item #: 85029189
Brand: Atlas Workholding
Model #: EZ123
Exact Tooling IR#: 04
Features and Benefits
Self-centering scroll chucks are designed with jaws on a scroll which open and close with a wrench that is turned on a pinion. They accurately self-center on the workpiece as the jaws close.
Cast iron also called semi-steel is the industry standard for chuck body material.
| Product Specifications | |
|---|---|
| Chuck Type | Self-Centering |
| Nominal Chuck Size | 12 |
| Number of Jaws | 3 |
| Mount | Plain Back |
| Through-Hole Diameter (Decimal Inch) | 3.2850 |
| Body Material | Cast Iron (Semi-Steel) |
| Reversible Jaws | Reversible Jaws |
| Number of Jaw Pieces | Two-Piece |
| Chuck Diameter (Inch) | 12 |
| Minimum Jaw Capacity (Inch) | 27/64 |
| Maximum Jaw Capacity (Inch) | 10 |
| Adjustable | Yes |
| TIR Repeatability (Decimal Inch) | 0.0005 |
| Body Length (Decimal Inch) | 4.0000 |
| Maximum RPM | 2000 |
| Includes | Two-Piece Tongue & Groove Jaws |
