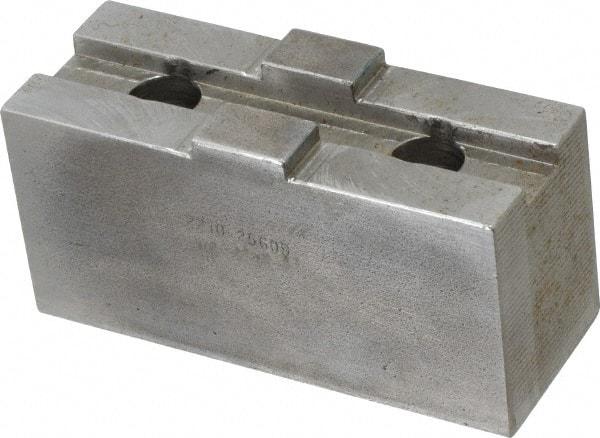

Atlas Workholding - Tongue & Groove Attachment, Square Soft Lathe Chuck Jaw - Steel, 2.12" Btw Mount Hole Ctrs, 3-15/16" Long x 1-1/2" Wide x 1.87" High, 1/2" Groove
Item #: 85029114
Brand: Atlas Workholding
Model #: 2210-25609
Exact Tooling IR#: 04
Features and Benefits
Square end jaws are blanks that can be machined to final size.
| Product Specifications | |
|---|---|
| Jaw Type | Square |
| Material | Steel |
| Jaw Interface Type | Tongue & Groove |
| Maximum Compatible Chuck Diameter (Inch) | 10 |
| Minimum Compatible Chuck Diameter (Inch) | 10 |
| Overall Height (Decimal Inch) | 1.8700 |
| Groove Width (Decimal Inch) | 0.5000 |
| Distance Between Mount Hole Centers (Decimal Inch) | 2.1200 |
| Jaw End Shape | Square |
| Fastener Size (Inch) | 1/2 |
| Key Size (Decimal Inch) | 0.5000 |
| Overall Width/Diameter (Decimal Inch) | 1.5000 |
| Overall Length (Inch) | 3-15/16 |
| Overall Length (Decimal Inch) | 3.9375 |
| Material Grade | 1018 |
