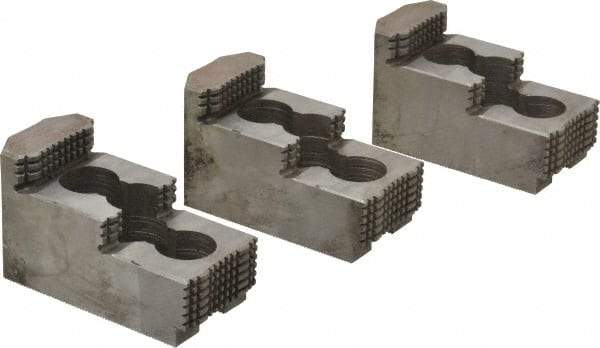

Atlas Workholding - 12" Max Chuck Diam Compatibility, Hard Steel 1.5mm x 60° Serrated Hard Lathe Top Jaws - 1.97" Wide x 4.52" Long x 2.28" High
Item #: 85029064
Brand: Atlas Workholding
Model #: 8130-31624
Exact Tooling IR#: 04
Features and Benefits
Top jaws, also known as hard or step jaws, hold a workpiece during an operation. They are reversible and are bolted onto the master jaw.
| Product Specifications | |
|---|---|
| Jaw Type | Top Jaws |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Maximum Compatible Chuck Diameter (Inch) | 12 |
| Maximum Compatible Chuck Diameter (Decimal Inch) | 12.00 |
| Material | Hard Steel |
| Overall Width/Diameter (Decimal Inch) | 1.9700 |
| Overall Length (Decimal Inch) | 4.5200 |
| Minimum Compatible Chuck Diameter (Inch) | 12 |
| Number of Jaws | 3 |
| Overall Height (Decimal Inch) | 2.2800 |
| Fastener Size (mm) | M14 |
| Key Size (Decimal Inch) | 0.7100 |
| Distance Between Mount Hole Centers (Decimal Inch) | 0.9480 |
