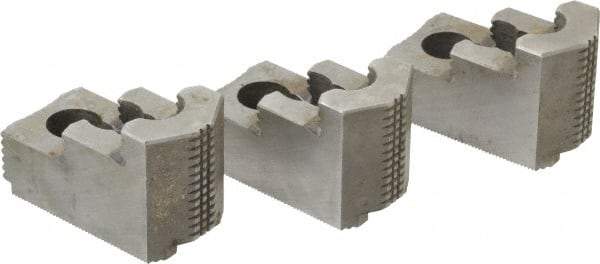

Atlas Workholding - 10" Max Chuck Diam Compatibility, Hard Steel 1.5mm x 60° Serrated Hard Lathe Top Jaws - 1.57" Wide x 2.95" Long x 1.96" High
Item #: 85029056
Brand: Atlas Workholding
Model #: 8130-26624
Exact Tooling IR#: 04
Features and Benefits
Top jaws, also known as hard or step jaws, hold a workpiece during an operation. They are reversible and are bolted onto the master jaw.
| Product Specifications | |
|---|---|
| Jaw Type | Top Jaws |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Maximum Compatible Chuck Diameter (Inch) | 10 |
| Maximum Compatible Chuck Diameter (Decimal Inch) | 10.00 |
| Material | Hard Steel |
| Overall Width/Diameter (Decimal Inch) | 1.5700 |
| Overall Length (Decimal Inch) | 2.9500 |
| Minimum Compatible Chuck Diameter (Inch) | 10 |
| Number of Jaws | 3 |
| Overall Height (Decimal Inch) | 1.9600 |
| Fastener Size (mm) | M12 |
| Key Size (Decimal Inch) | 0.6300 |
| Distance Between Mount Hole Centers (Decimal Inch) | 0.7480 |
