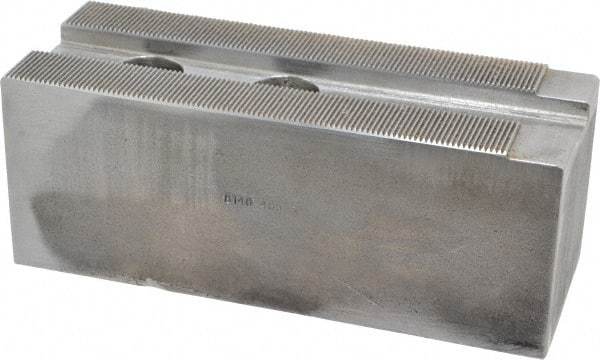

Atlas Workholding - 1.5mm x 60° Serrated Attachment, Square Soft Lathe Chuck Jaw - Steel, 1.69" Btw Mount Hole Ctrs, 6-1/2" Long x 2-1/2" Wide x 2-1/2" High, 0.866" Groove, M20mm Fastener
Item #: 85029015
Brand: Atlas Workholding
Model #: 8140-40525
Exact Tooling IR#: 04
Features and Benefits
Square end jaws are blanks that can be machined to final size.
| Product Specifications | |
|---|---|
| Jaw Type | Square |
| Material | Steel |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Maximum Compatible Chuck Diameter (Inch) | 18 |
| Minimum Compatible Chuck Diameter (Inch) | 15 |
| Overall Height (Decimal Inch) | 2.5000 |
| Groove Width (Decimal Inch) | 0.8660 |
| Distance Between Mount Hole Centers (Decimal Inch) | 1.6900 |
| Jaw End Shape | Square |
| Fastener Size (mm) | M20 |
| Key Size (Decimal Inch) | 0.8660 |
| Overall Width/Diameter (Decimal Inch) | 2.5000 |
| Overall Length (Inch) | 6-1/2 |
| Overall Length (Decimal Inch) | 6.5000 |
| Material Grade | 1018 |
