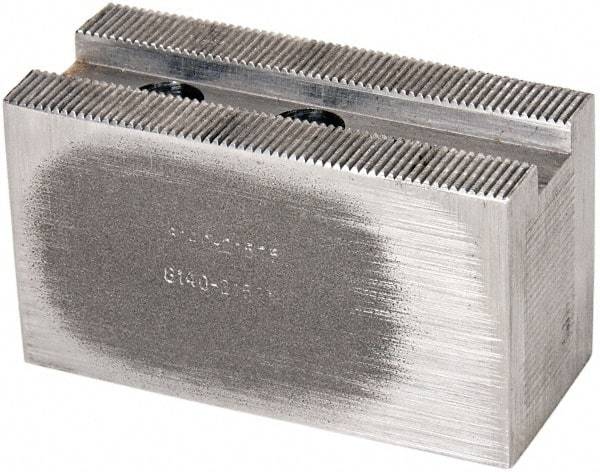

Atlas Workholding - 1.5mm x 60° Serrated Attachment, Square Soft Lathe Chuck Jaw - Steel, 1" Btw Mount Hole Ctrs, 3-1/2" Long x 1-1/2" Wide x 2" High, 0.551" Groove, M12mm Fastener
Item #: 85028983
Brand: Atlas Workholding
Model #: 8140-21525
Exact Tooling IR#: 04
Features and Benefits
Pointed jaws are blanks used for smaller part diameters, allowing closer contact than square end jaws.
| Product Specifications | |
|---|---|
| Jaw Type | Square |
| Material | Steel |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Maximum Compatible Chuck Diameter (Inch) | 8 |
| Minimum Compatible Chuck Diameter (Inch) | 8 |
| Overall Height (Inch) | 2 |
| Groove Width (Decimal Inch) | 0.5510 |
| Distance Between Mount Hole Centers (Decimal Inch) | 1.0000 |
| Jaw End Shape | Pointed |
| Fastener Size (mm) | M12 |
| Key Size (Decimal Inch) | 0.5510 |
| Overall Width/Diameter (Decimal Inch) | 1.5000 |
| Overall Length (Inch) | 3-1/2 |
| Overall Length (Decimal Inch) | 3.5000 |
| Material Grade | 1018 |
