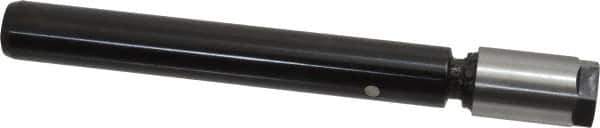

Kennametal - 3/4" Straight Shank Diam Tension & Compression Tapping Chuck - #0 to 1/2" Tap Capacity, 1-1/2" Projection
Item #: 84941616
Brand: Kennametal
Model #: 1017581
Exact Tooling IR#: 04
Features and Benefits
Tension and compression tapping styles are engineered to automatically compensate for machine feed, pitch and tap rates. They feature a spring design that allows the tap to float during the cutting cycle without affecting the pitch.
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Tapping Style | Tension & Compression |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 3/4 |
| Minimum Tap Capacity (Inch) | #0 |
| Maximum Tap Capacity (Inch) | 1/2 |
| Projection (Decimal Inch) | 1.5000 |
| Projection (Inch) | 1-1/2 |
| Quick Change | No |
| Minimum Collet Capacity (mm) | M1 |
| Minimum Collet Capacity (Inch) | #0; 1/16 (Pipe Tap) |
| Maximum Collet Capacity (Inch) | 1/2 |
| Maximum Collet Capacity (mm) | M12 |
| Collet System | Double Angle Tap |
| Collet Series | J |
| Nose Diameter (Decimal Inch) | 0.8500 |
| Tap Depth (Inch) | 9/16 |
| Tension (Decimal Inch) | 0.5600 |
| Compression (Decimal Inch) | 0.1900 |
| Overall Length (Decimal Inch) | 7.1250 |
| Overall Length (Inch) | 7-1/8 |
| Through Coolant | No |
