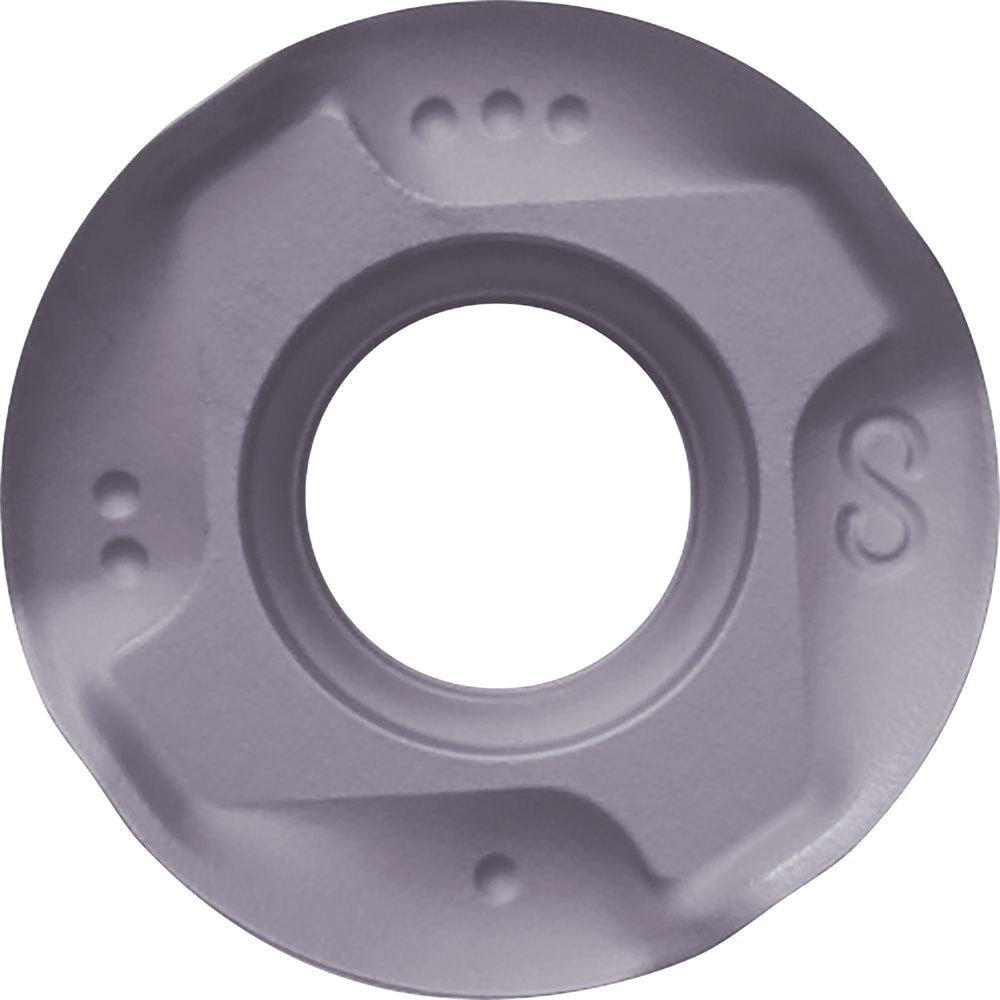

Milling Insert: ROMU1605M0ER-SM PR1825, Carbide
Item #: 86476371
Brand: Kyocera
Model #: TLT00149
Product Specifications
| Insert Style | ROMU |
| Insert Size | 1605 |
| Insert Material | Carbide |
| Insert Shape | Round |
| Manufacturer Grade | PR1825 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Corner Radius (mm) | 0.00 |
| Number Of Cutting Edges | 8 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2158 |
| Thickness (mm) | 5.4800 |
| Coating/Finish | MEGACOAT NANO EX |
| Inscribed Circle (Decimal Inch) | 0.6299 |
| Inscribed Circle (mm) | 16.00 |
| Insert Hand | Neutral |
| Series | MRW Radius Milling |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 6.2000 |
| Hole Diameter (Decimal Inch) | 0.2441 |
| Cutting Edge Effective Length (mm) | 15.80 |
| Cutting Edge Effective Length (Decimal Inch) | 0.6221 |
| Rake | Positive |
| Primary Workpiece Material | Mold Steel; Alloy Steel; Carbon Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Austenitic Stainless Steel |
| Secondary Workpiece Material Code | M |
| Ansi Code | ROMU1605M0ERSMPR1825 |
| Iso Code | ROMU1605M0ER-SM |
| Cutting Edge Style | Low Cutting Force; Honed |
| Manufacturers Catalog Number | ROMU1605M0ERSMPR1825 |
| Chip Breaker | M0ER-SM |
| Cutting Direction | Neutral |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Single or Double Sided Insert | Double |
| Length (mm) | 15.80 |
| Width (Decimal Inch - 4 Decimals) | 0.6299 |
| Width (mm - 2 Decimals) | 16.00 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6221 |
| Country of Origin | Japan |
