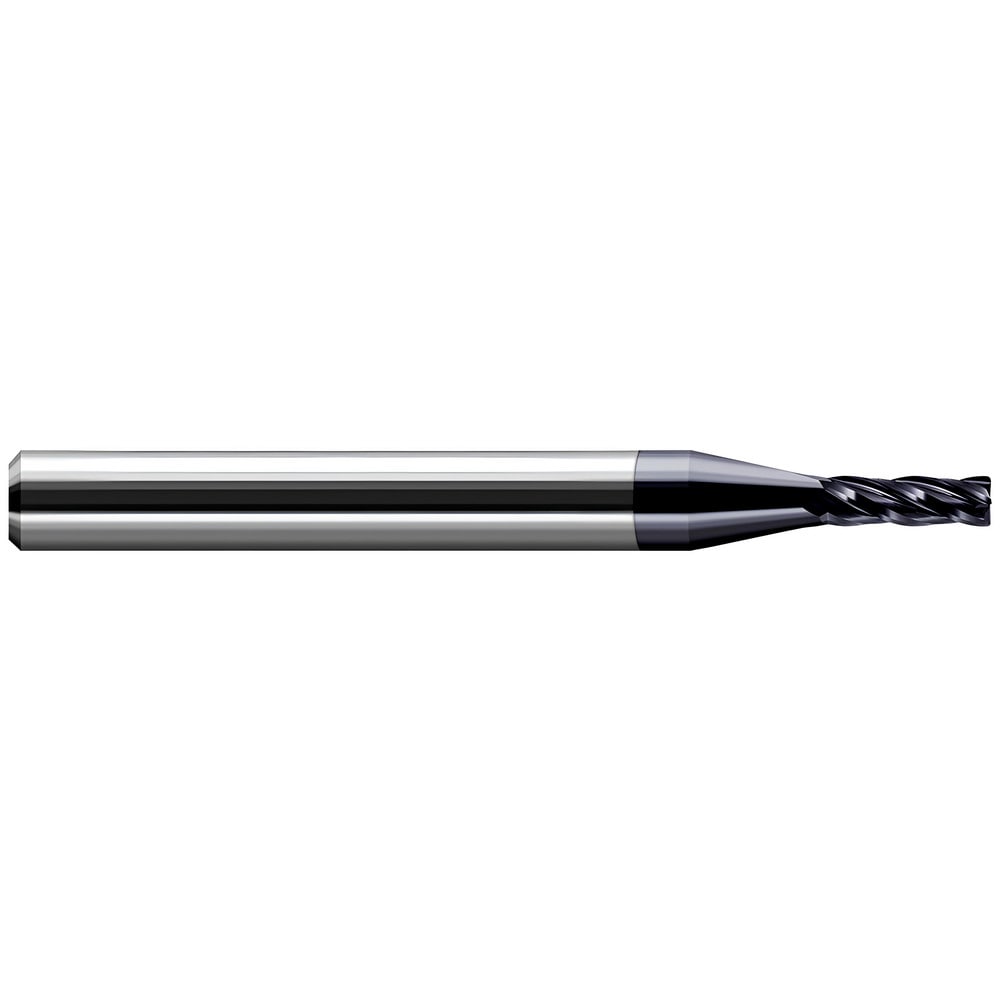

Corner Radius End Mill: 3/16" Dia, 5/8" LOC, 0.0030" Radius, 4 Flute, Solid Carbide
Item #: 86861036
Brand: Harvey Tool
Model #: 34803-C3
Product Specifications
| Mill Diameter (Inch) | 3/16 |
| Mill Diameter (Decimal Inch) | 0.1875 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 5/8 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | AlTiN |
| Overall Length (Inch) | 2 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0030 |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Pitch | Normal |
| Overall Length (Decimal Inch) | 2.0000 |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.6250 |
| Length Type | Regular |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Shank Diameter (Inch) | 3/16 |
| Corner Radius Tolerance | 0.0010 to -0.0010 in |
| Mill Diameter Tolerance | 0.0000/-0.0020 in |
| Overall Length Tolerance | 0.0100/-0.0000 in |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Non-ISO; Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P; K; M; N; O |
| Series | Miniature End Mills - Corner Radius - Stub & Standard; Miniature End Mills |
| Material Application | Non-Ferrous Metal; Composite; Stainless Steel; Cast Iron; Steel |
| Coating Classification | PVD |
| For Use With. | Toolholders |
| Country of Origin | UNITED STATES |
