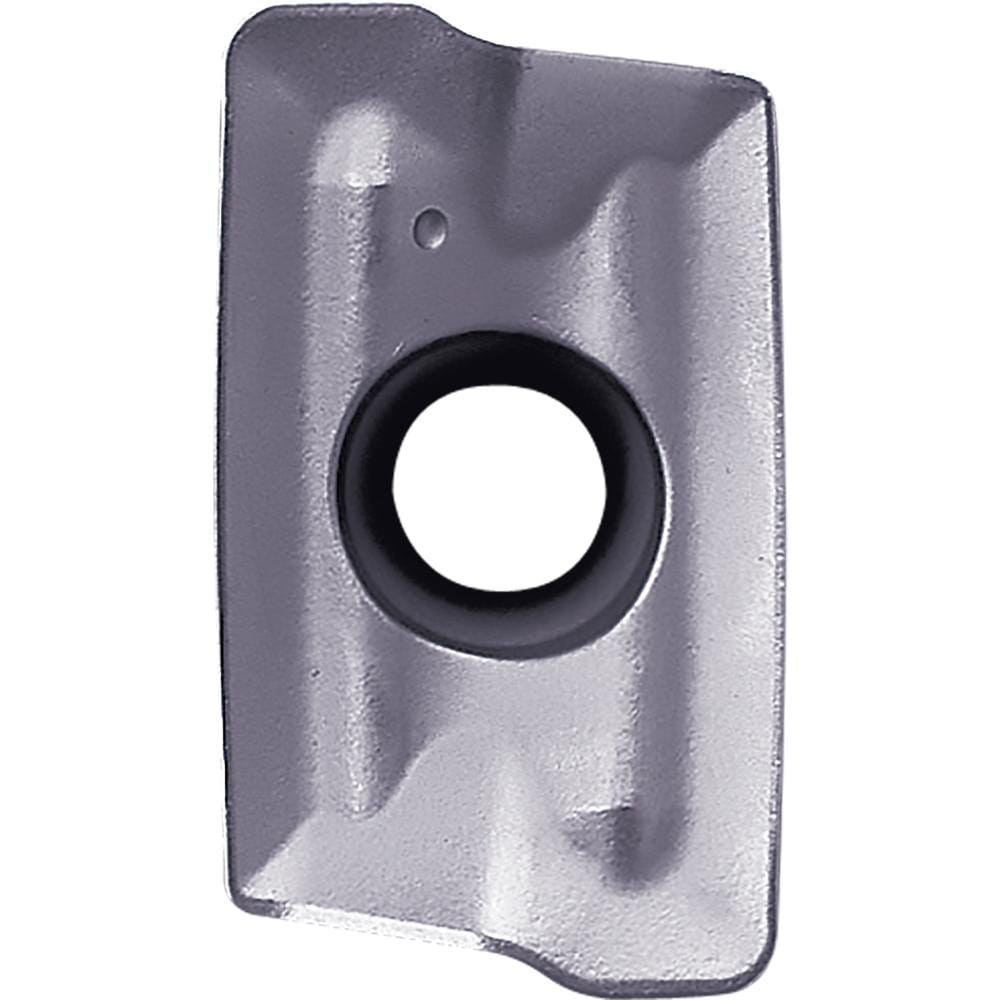

Milling Insert: BDMT11T320ER-JT PR1810, Carbide
Item #: 86859576
Brand: Kyocera
Model #: TLS00022
Product Specifications
| Insert Style | BDMT |
| Insert Size | 11T320 |
| Insert Material | Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | PR1810 |
| Corner Radius (Decimal Inch) | 0.0787 |
| Corner Radius (mm) | 2.00 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1496 |
| Thickness (mm) | 3.8000 |
| Coating/Finish | MEGACOAT NANO EX |
| Relief Angle | 18.000 |
| Corner Radius (Inch) | 5/64 |
| Insert Hand | Right Hand |
| Series | MEC Milling |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.8000 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Cutting Edge Effective Length (mm) | 11.00 |
| Cutting Edge Effective Length (Decimal Inch) | 0.4331 |
| Rake | Positive |
| Primary Workpiece Material | Nodular Cast Iron; Gray Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | BDMT11T320ERJTPR1810 |
| Iso Code | BDMT11T320ER-JT |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | BDMT11T320ERJTPR1810 |
| Chip Breaker | ER-JT |
| Cutting Direction | Right Hand |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Single or Double Sided Insert | Single |
| Width (Decimal Inch - 4 Decimals) | 0.2638 |
| Width (mm - 2 Decimals) | 6.70 |
| Multi-Use Tool | Yes |
| Country of Origin | Japan |
