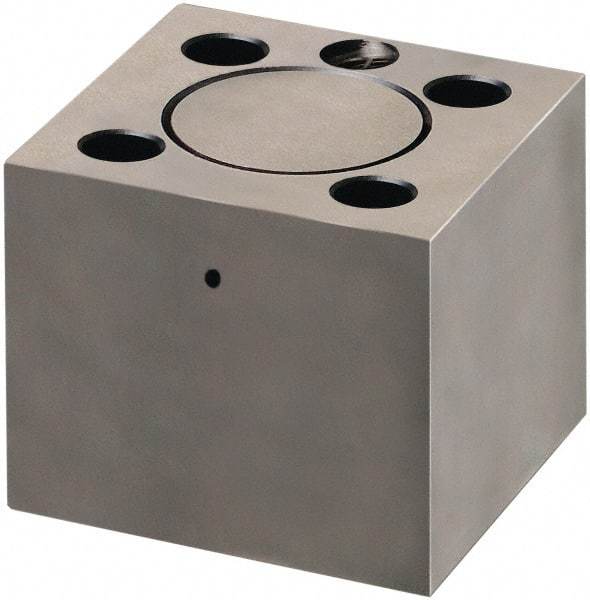

Dayton Lamina - 1/2" Shank Diam, 1-1/2" Base Length x 1-1/2" Base Width x 1-1/4" Base Height, 5/16-18 Thread, Alloy Steel Mold Punch Retainer - 5/16" Dowel Diam, 7/8" Length Between Dowel & Screw, 1-1/2" Thread Length, Ball Lock
Item #: 84662956
Brand: Dayton Lamina
Model #: LRS 50
Exact Tooling IR#: 04
Features and Benefits
Alloy steel is the strongest of all steel types. It has high tensile strength and offers excellent resistance to wear, fatigue and galling.
| Product Specifications | |
|---|---|
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Base Length (Inch) | 1-1/2 |
| Base Length (Decimal Inch) | 1.5000 |
| Base Width (Inch) | 1-1/2 |
| Base Width (Decimal Inch) | 1.5000 |
| Thread Size | 5/16-18 |
| Thread Length (Inch) | 1-1/2 |
| Base Height (Decimal Inch) | 1.2500 |
| Locking Type | Ball Lock |
| Dowel Diameter (Decimal Inch) | 0.3125 |
| Dowel Diameter (Inch) | 5/16 |
| Length Between Dowel & Screw Hole (Inch) | 7/8 |
| Length Between Dowel & Screw Hole (Decimal Inch) | 0.8750 |
| Width Between Dowel & Screw Hole (Inch) | 7/8 |
| Width Between Dowel & Screw Hole (Decimal Inch) | 0.8750 |
| Length Between Punch Shank & Dowel (Decimal Inch) | 0.4380 |
| Material | Alloy Steel |
| Includes | Backing Plug; Ball; Dowels; Screws; Spring |
