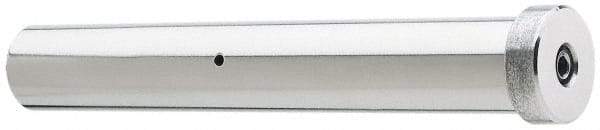

Dayton Lamina - 3/4" Head Diam, 5/8" Shank Diam, M2 Grade High Speed Steel, Solid Mold Die Blank & Punch - 1/4" Head Height, 2-3/4" OAL, Blank Punch, Jektole (KJB) Series
Item #: 84601301
Brand: Dayton Lamina
Model #: KJB 62 275 M2
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Punch Type | Blank |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Overall Length (Inch) | 2-3/4 |
| Overall Length (Decimal Inch) | 2.7500 |
| Head Diameter (Inch) | 3/4 |
| Head Diameter (Decimal Inch) | 0.7500 |
| Head Height (Inch) | 1/4 |
| Head Height (Decimal Inch) | 0.2500 |
| Material | High Speed Steel |
| Material Grade | M2 |
| Minimum Machinable Length (Decimal Inch) | 0.9300 |
| Pin Extension Length (Inch) | 1/16 |
| Pin Extension Length (Decimal Inch) | 0.0625 |
| Hardness | Body RC 60-63, Head RC 40-55 |
| Series | Jektole (KJB) |
| Minimum Machinable Length (Inch) | 15/16 |
