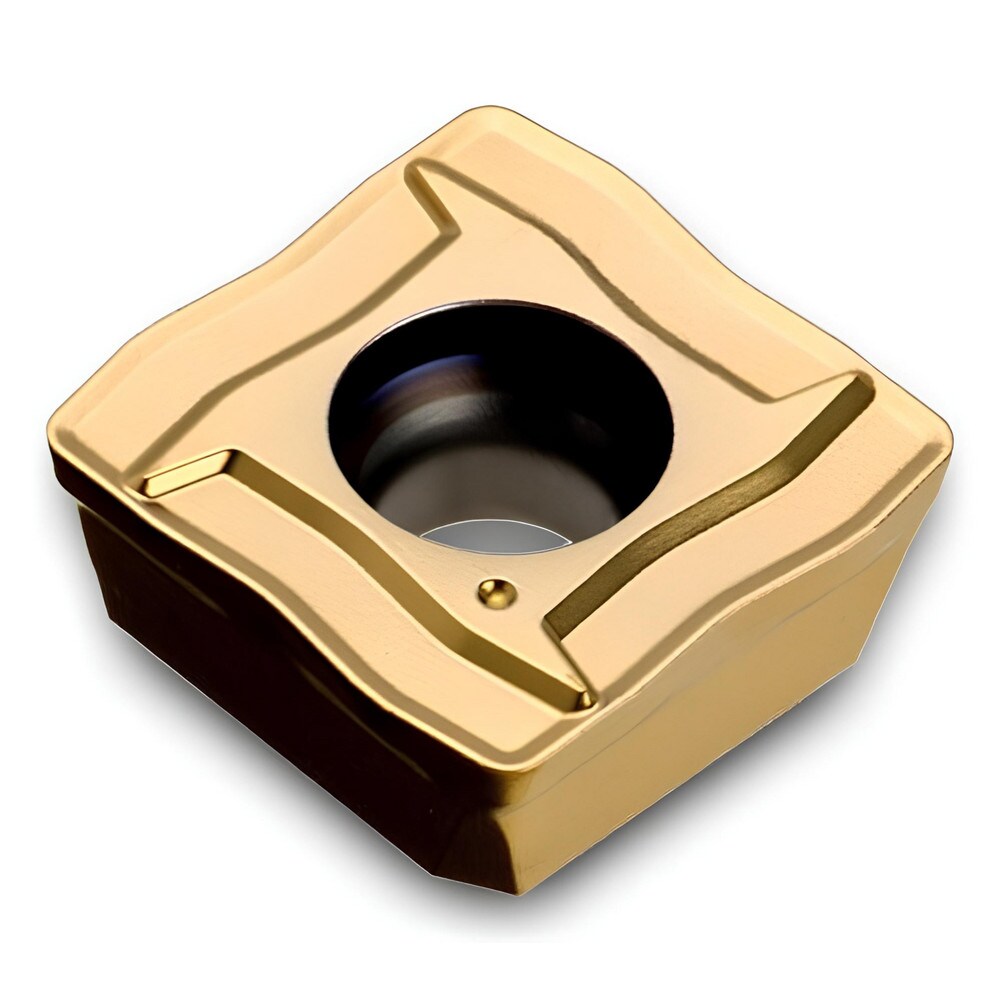

Indexable Drill Insert: SOMT130408PS IN2505, Carbide
Item #: 04260071
Brand: Ingersoll Cutting Tools
Model #: 6304151
Product Specifications
| Insert Style | SOMT |
| Insert Material | Carbide |
| Manufacturer Grade | IN2505 |
| Thickness (mm) | 4.65 |
| Inscribed Circle (Decimal Inch) | 0.5040 |
| Corner Radius (Inch) | 1/32 |
| Chipbreaker | PS |
| Series | SOMT |
| Coating Process | PVD |
| Shape | Square |
| Number Of Cutting Edges | 4 |
| Rake | Positive |
| Manufacturers Catalog Number | SOMT130408PS IN2505 |
| Compatible Drill Style | QR |
| Insert Size | 13 |
| Width (Decimal Inch - 4 Decimals) | 0.504 |
| Length (Decimal Inch - 4 Decimals) | 0.504 |
| Included Angle Degree | 90 |
| Thickness (Decimal Inch - 4 Decimals) | 0.183 |
| Coating/Finish | TiN; TiAlN |
| Insert Size Code | 130408 |
| UNSPSC Code | 23242105 |
