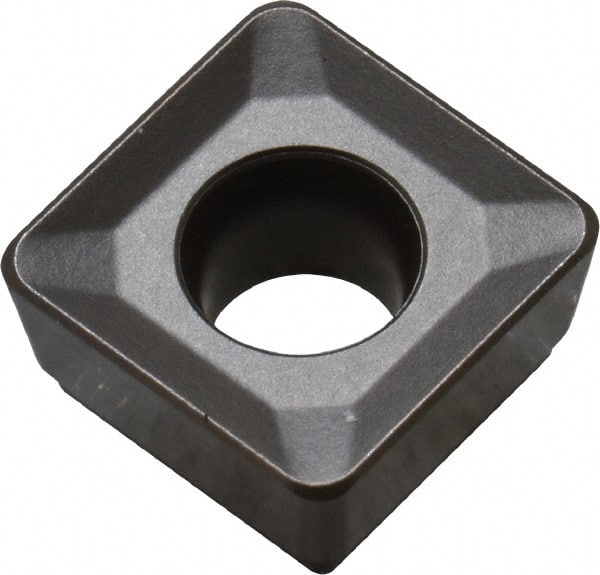

SCET120612T-MD15 T350M Carbide Milling Insert TiCN/Al2O3 Finish, 1/4″ Thick
Item #: 84190271
Brand: Seco
Model #: 02505893
Product Specifications
| Insert Style | SCET |
| Insert Size | 120612 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | T350M |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness Range (Decimal Inch) | 0.2500 to 0.3500 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Inscribed Circle Range (Decimal Inch) | 0.5000 to 0.5100 |
| Insert Hand | Neutral |
| Relief Angle | 7.00 |
| Coating Process | CVD |
| Iso Code | SCET120612T-MD15 |
| Rake Angle | 15.00 |
| Chip Breaker | MD15 |
| Shape | Square |
| Coating/Finish | TiCN; Al2O3 |
| Included Angle Degree | 90 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2500 |
