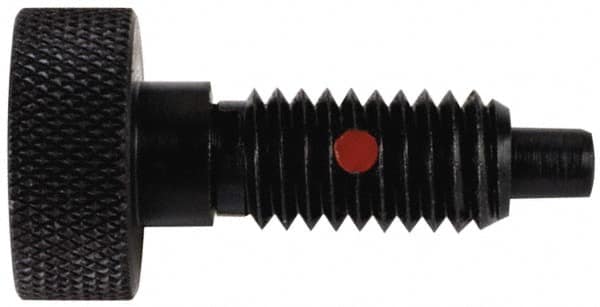

TE-CO - Knob-Handle Plungers Thread Size: 5/16-18 Thread Length (Decimal Inch): 0.6250
Item #: 76850072
Brand: TE-CO
Model #: 54602
Product Specifications
Knob-Handle Plungers; Thread Size: 5/16-18 ; Thread Length (Decimal Inch): 0.6250 ; Plunger Type: Non-Locking ; Knob Style: Knurled ; Body Length (Decimal Inch): 0.7500 ; Length Under Head/Shoulder (Decimal Inch): 0.6250
| Thread Size | 5/16-18 |
| Thread Length (Decimal Inch) | 0.6250 |
| Plunger Type | Non-Locking |
| Knob Style | Knurled |
| Body Length (Decimal Inch) | 0.7500 |
| Length Under Head/Shoulder (Decimal Inch) | 0.6250 |
| Plunger Projection (Decimal Inch) | 0.1880 |
| Maximum Plunger Diameter (Decimal Inch) | 0.1540 |
| Initial End Force (Lb.) | 1.00 |
| Final End Force (Lb.) | 6.00 |
| Locking Element | Yes |
| Plunger Length (Decimal Inch) | 1.0000 |
| Head Diameter (Decimal Inch) | 0.6300 |
| Head Height (Decimal Inch) | 0.2500 |
| Head & Shoulder Height (Decimal Inch) | 0.3750 |
| Material | Steel |
| Finish/Coating | Black Oxide |
| Plunger Diameter Tolerance (Decimal Inch) | +0.0010 |
