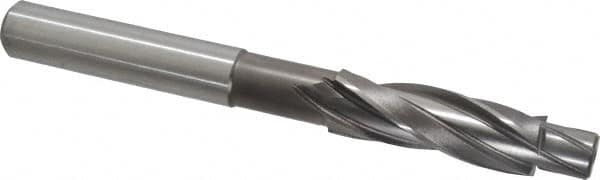

Cleveland - 9/16" Socket Head Cap Screw Compatible, High Speed Steel, Solid Pilot Counterbore
Item #: 81852527
Brand: Cleveland
Model #: C91724
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Fastener Type Compatibility | Socket-Head Cap Screw |
| Counterbore Diameter (Inch) | 13/16 |
| Fastener Size Compatibility (Inch) | 9/16 |
| Counterbore Material | High Speed Steel |
| Finish/Coating | Bright |
| Standard or Oversize Pilot | Standard |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (mm) | 19.05 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Number of Flutes | 3 |
| Aircraft-Style | No |
| Pilot Diameter (Inch) | 9/16 |
| Shank Type | Straight |
| Overall Length (mm) | 190.50 |
| Overall Length (Inch) | 7-1/2 |
| Overall Length (Decimal Inch) | 7.50 |
| Cutting Direction | Forward |
| Material Application | Alloy Tool Steel; Carbon Steel; Cast Iron |
