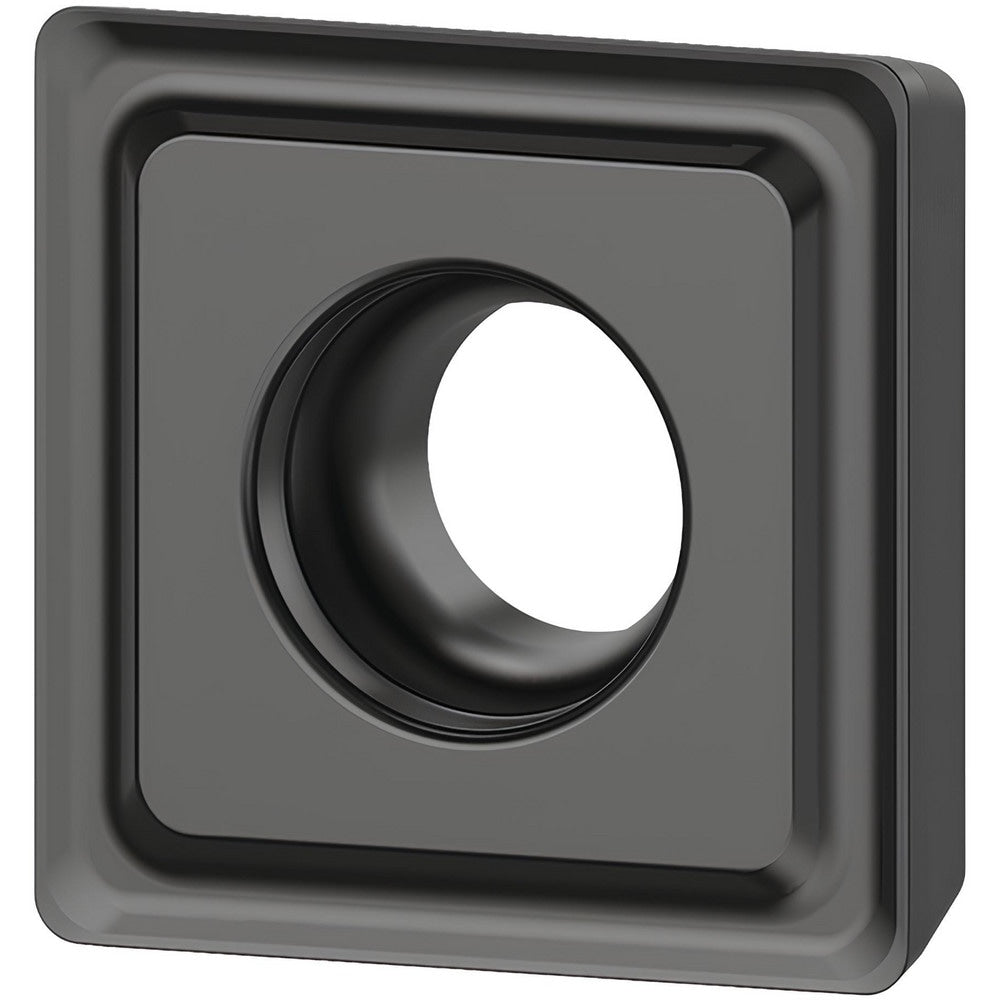

Indexable Drill Inserts; Insert Style: DFPR; Insert Material: Carbide; Manufacturer Grade: KCU25; Thickness (mm): 3
Item #: 02714475
Brand: Kennametal
Model #: 7034253
Product Specifications
| Insert Style | DFPR |
| Insert Material | Carbide |
| Manufacturer Grade | KCU25 |
| Thickness (mm) | 3 |
| Inscribed Circle (Decimal Inch) | 0.3700 |
| Inscribed Circle (mm) | 9.40 |
| Corner Radius (Decimal Inch) | 0.0190 |
| Corner Radius (mm) | 0.5 |
| Chipbreaker | PK |
| Series | Drill Fix |
| Shape | Proprietary |
| Relief Angle | 11 |
| Ansi Code | DFPR090305PKO |
| Iso Code | DFPR090305PKO |
| Compatible Drill Style | DFPR |
| Insert Size | 09 |
| Width (mm - 2 Decimals) | 9.4 |
| Length (Mm) | 9.40 |
| Width (Decimal Inch - 4 Decimals) | 0.37 |
| Length (Decimal Inch - 4 Decimals) | 0.37 |
| Included Angle Degree | 11 |
| Coating/Finish | MT-TiCN |
| Insert Size Code | 09 |
| UNSPSC Code | 23242105 |
