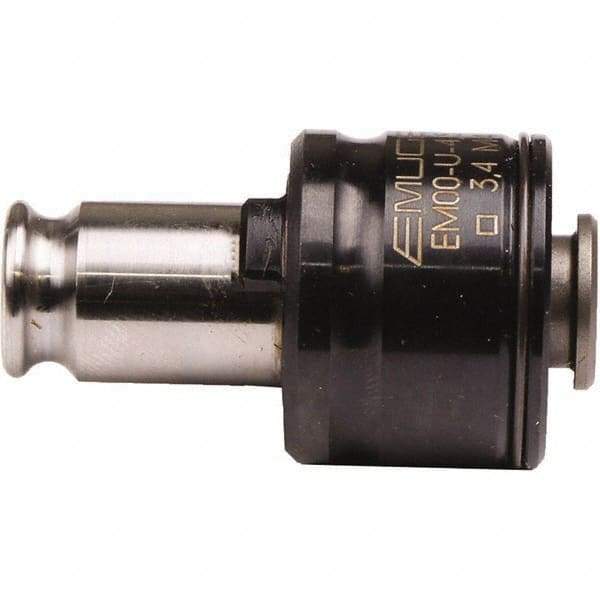

Emuge - 0.1575" Tap Shank Diam, 0.1181" Tap Square Size, #0 Tapping Adapter - 0.8661" Projection, 0.8661" Tap Depth, 1.6339" OAL, 0.5118" Shank OD, Through Coolant, Series EM00-U
Item #: 82559352
Brand: Emuge
Model #: F0570103
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Adapter Size | 0 |
| Tap Shank Diameter (mm) | 4.00 |
| Tap Shank Diameter (Decimal Inch) | 0.1575 |
| Tap Square Size (mm) | 3.00 |
| Tap Square Size (Decimal Inch) | 0.1181 |
| Quick Change | Yes |
| Projection (mm) | 22.00 |
| Projection (Decimal Inch) | 0.8661 |
| Tap Depth (mm) | 22.00 |
| Tap Depth (Decimal Inch) | 0.8661 |
| Series | EM00-U |
| Overall Length (mm) | 41.50 |
| Overall Length (Decimal Inch) | 1.6339 |
| Flange Diameter (mm) | 24.00 |
| Flange Diameter (Decimal Inch) | 0.9449 |
| Outside Shank Diameter (mm) | 13.00 |
| Outside Shank Diameter (Decimal Inch) | 0.5118 |
| Through Coolant | Yes |
| PSC Code | 5136 |
