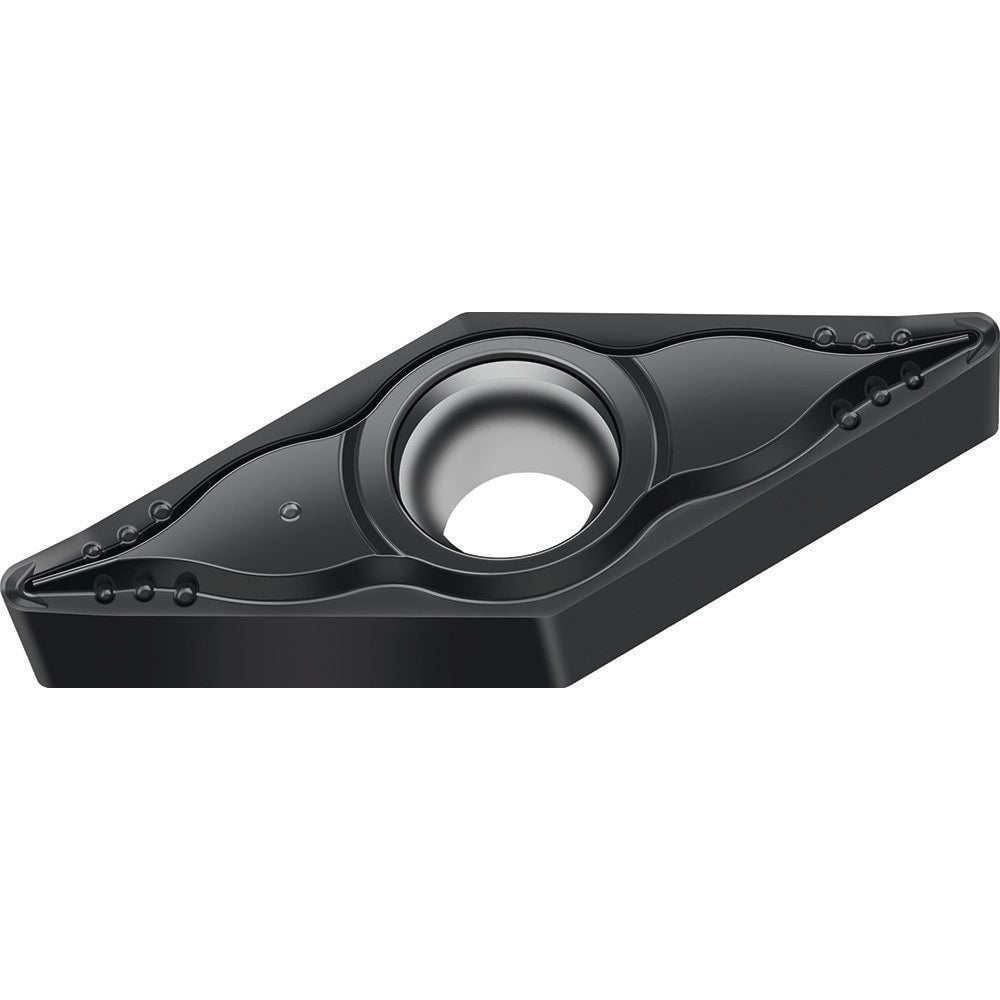

Turning Insert: VBMT330.5MM4 WSM01, Carbide
Item #: 91740100
Brand: Walter
Model #: 8461477
Product Specifications
| ANSI Insert Code | VBMT3(3)0.5 |
| ISO Insert Code | VBMT160402 |
| Relief Angle | 5.000 |
| Insert Style | VBMT |
| Corner Radius (mm) | 0.20 |
| Included Angle | 35.00 |
| Manufacturer Grade | WSM01 |
| Coating/Finish | TiAlN/THL |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness | 4.76 |
| Series | VBMT |
| Inscribed Circle (mm) | 9.53 |
| Insert Material | Carbide |
| Insert Shape | Rhombic 35° |
| Chip Breaker Operation | Medium Machining |
| Grade Characteristics | Special, Super Alloys (S) - High Wear-Resistance; Hardened Materials (H) - High Wear-Resistance; Stainless Steel (M) - High Wear-Resistance; Steel (P) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - High Wear-Resistance |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | V |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.4000 |
| Maximum Depth of Cut (mm) | 2.00 |
| Insert Holding Method | Screw |
| Clearance Code | B |
| Tolerance Code | M |
| Insert Length (mm) | 16.61 |
| Manufacturers Catalog Number | VBMT160402-MM4 WSM01 |
| Chip Breaker | MM4 |
| Width (mm - 2 Decimals) | 9.53 |
| ANSI Size Code | 3(3)0.5 |
| ISO Size Code | 160402 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 16 |
| Country of Origin | Germany |
