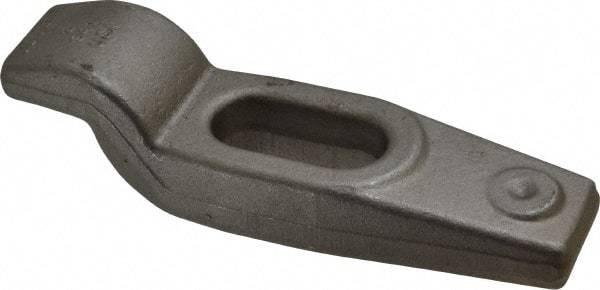

Jergens - 6" OAL x 1-3/4" Overall Width x 1-9/16" Overall Height, Gooseneck Clamp - Grade C-1030/C-1035 Forged Steel, 7/16" Nose Height x 1-1/4" Nose Width, 1" Slot Len x 11/16" Slot Width, 1-1/8" Neck Len
Item #: 82430364
Brand: Jergens
Model #: 37213
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Overall Length (mm) | 254.00 |
| Overall Length (Inch) | 6 |
| Overall Height (mm) | 39.69 |
| Overall Height (Inch) | 1-9/16 |
| Overall Width (mm) | 44.45 |
| Overall Width (Inch) | 1-3/4 |
| Nose Height (mm) | 11.11 |
| Nose Height (Inch) | 7/16 |
| Nose Width (mm) | 31.75 |
| Nose Width (Inch) | 1-1/4 |
| Slot Length (mm) | 25.40 |
| Slot Length (Inch) | 1 |
| Slot Width (mm) | 17.46 |
| Slot Width (Inch) | 11/16 |
| Neck Length (mm) | 28.58 |
| Neck Length (Inch) | 1-1/8 |
| Tapped | No |
| Material | Forged Steel |
| Strap Style | Gooseneck Clamps - Not Drilled or Tapped |
| Height Under Neck (mm) | 23.81 |
| Height Under Neck (Inch) | 15/16 |
| Stud Size (mm) | M16 |
| Stud Size (Inch) | 5/8 |
| Travel (mm) | 25.40 |
| Travel (Inch) | 1 |
| Tapered | Yes |
| Base Height (mm) | 22.23 |
| Base Height (Inch) | 7/8 |
| Material Grade | C-1030/C-1035 |
| Tapered Height (Inch) | 9/16 |
| Tapered Height (mm) | 14.29 |
| End to Stud Center (mm) | 63.50 |
| End to Stud Center (Inch) | 2-1/2 |
| End to Hole Center (mm) | 15.88 |
| End to Hole Center (Inch) | 5/8 |
