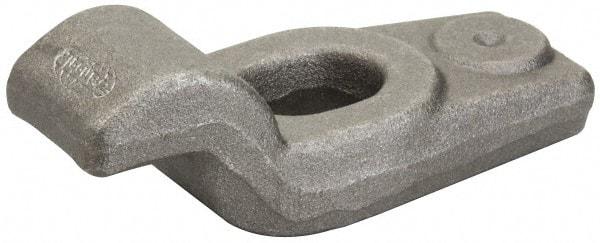

Jergens - 4" OAL x 1-5/8" Overall Width x 1-7/16" Overall Height, Gooseneck Clamp - Grade C-1030/C-1035 Forged Steel, 3/8" Nose Height x 1-3/16" Nose Width, 1/4" Slot Len x 11/16" Slot Width, 3/4" Neck Len
Item #: 82430349
Brand: Jergens
Model #: 37211
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Overall Length (mm) | 101.60 |
| Overall Length (Inch) | 4 |
| Overall Height (mm) | 36.51 |
| Overall Height (Inch) | 1-7/16 |
| Overall Width (mm) | 41.28 |
| Overall Width (Inch) | 1-5/8 |
| Nose Height (mm) | 9.53 |
| Nose Height (Inch) | 3/8 |
| Nose Width (mm) | 30.16 |
| Nose Width (Inch) | 1-3/16 |
| Slot Length (mm) | 6.35 |
| Slot Length (Inch) | 1/4 |
| Slot Width (mm) | 17.46 |
| Slot Width (Inch) | 11/16 |
| Neck Length (mm) | 19.05 |
| Neck Length (Inch) | 3/4 |
| Tapped | No |
| Material | Forged Steel |
| Strap Style | Gooseneck Clamps - Not Drilled or Tapped |
| Height Under Neck (mm) | 20.64 |
| Height Under Neck (Inch) | 13/16 |
| Stud Size (mm) | M16 |
| Stud Size (Inch) | 5/8 |
| Travel (mm) | 6.35 |
| Travel (Inch) | 1/4 |
| Tapered | Yes |
| Base Height (mm) | 19.05 |
| Base Height (Inch) | 3/4 |
| Material Grade | C-1030/C-1035 |
| Tapered Height (Inch) | 1/2 |
| Tapered Height (mm) | 12.70 |
| End to Stud Center (mm) | 47.63 |
| End to Stud Center (Inch) | 1-7/8 |
| End to Hole Center (mm) | 12.70 |
| End to Hole Center (Inch) | 1/2 |
