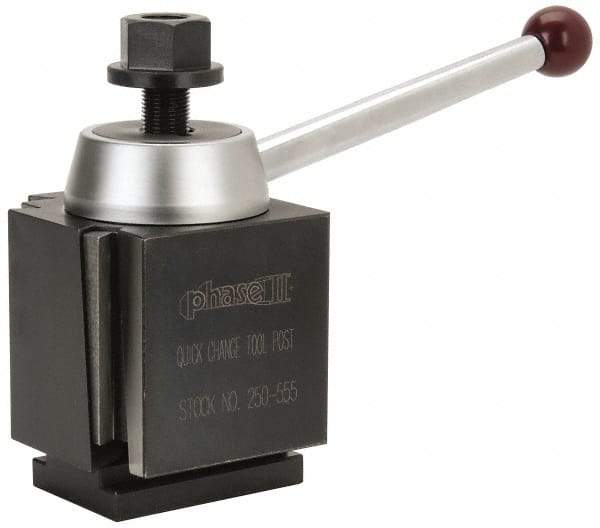

Phase II - 17 to 48 Inch Lathe Swing, Wedge Type Quick Change Tool Post - 7-3/8 Inch Tool Post Height, Series 500, 8-3/8 Inch Overall Height
Item #: 82412768
Brand: Phase II
Model #: 250-555
Exact Tooling IR#: 04
Features and Benefits
The clamping mechanism is a wedge that pushes out from the side of the dovetail when the clamping lever on the tool post is engaged.
| Product Specifications | |
|---|---|
| Type | Quick Change Tool Post - Wedge Type |
| Series | 500 |
| Lathe Swing (Inch) | 17 to 48 |
| Through Coolant | No |
| Base Width (Inch) | 5 |
| Base Width (Decimal Inch) | 5.0000 |
| Tool Post Height (Inch) | 7-3/8 |
| Centerline to Handle Edge (Inch) | 10-25/32 |
| Bolt Hole Diameter (Inch) | 1 |
| Overall Height (Inch) | 8-3/8 |
| Body Height (Inch) | 4-5/8 |
| Additional Information | Tool Post T-Nut may require machining |
