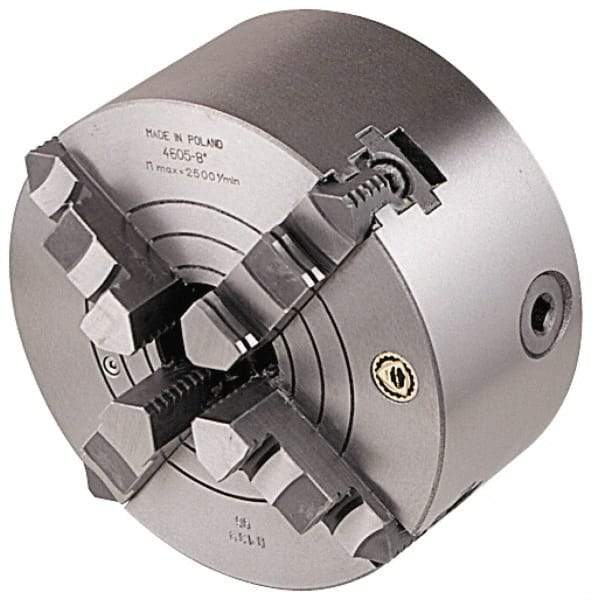

Bison - Manual Lathe Chucks Chuck Type: Combination Independent & Self-Centering Nominal Chuck Size: 20
Item #: 82354994
Brand: Bison
Model #: 7-848-2000
Exact Tooling IR#: 04
Features and Benefits
Combination independent and self-centering chucks allow each jaw to be operated independently or move simultaneously as a self-centering scroll chuck.
Cast iron also called semi-steel is the industry standard for chuck body material.
Product Specifications
Manual Lathe Chucks; Chuck Type: Combination Independent & Self-Centering ; Nominal Chuck Size: 20 ; Number of Jaws: 4 ; Mount: Plain Back ; Through-Hole Diameter (Decimal Inch): 7.4800 ; Body Material: Cast Iron (Semi-Steel)
| Chuck Type | Combination Independent & Self-Centering |
| Nominal Chuck Size | 20 |
| Number of Jaws | 4 |
| Mount | Plain Back |
| Through-Hole Diameter (Decimal Inch) | 7.4800 |
| Body Material | Cast Iron (Semi-Steel) |
| Reversible Jaws | Reversible Jaws |
| Number of Jaw Pieces | One-Piece |
| Chuck Diameter (Inch) | 20 |
| Minimum Jaw Capacity (Decimal Inch) | 0.7800 |
| Maximum Jaw Capacity (Inch) | 20 |
| Adjustable | No |
| Body Length (Decimal Inch) | 5.7087 |
| Maximum RPM | 500 |
| Includes | Set of Hard Solid Reversible Jaws; Set of Mounting Screws; Wrench |
