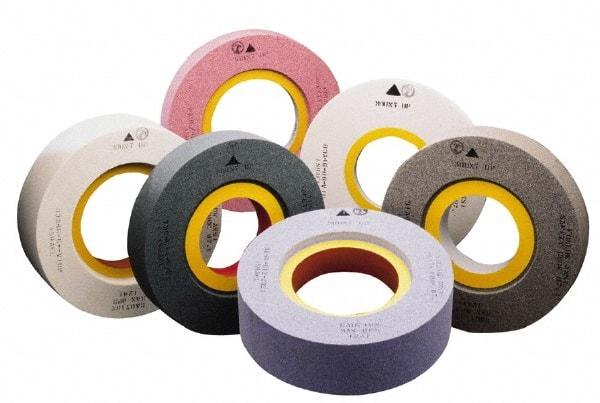

Camel Grinding Wheels - 20" Diam x 8" Hole x 3" Thick, I Hardness, 46 Grit Surface Grinding Wheel - Aluminum Oxide, Type 7, Coarse Grade, 1,241 Max RPM, Vitrified Bond, Two-Side Recess
Item #: 82268327
Brand: Camel Grinding Wheels
Model #: 34034
Exact Tooling IR#: 04
Features and Benefits
Aluminum oxide is the most commonly used abrasive. Best-suited for general purpose deburring and blending, it is tough, economical and fracture-resistant. Commonly used on ferrous alloys, high-tensile materials, and wood.
Two Sides Recessed.
| Product Specifications | |
|---|---|
| Wheel Diameter (Inch) | 20 |
| Hole Size (Inch) | 8 |
| Wheel Thickness (Inch) | 3 |
| Wheel Hardness | I |
| Abrasive Material | Aluminum Oxide |
| Grade | Coarse |
| Grit | 46 |
| Wheel Type Number | Type 7 |
| Maximum RPM | 1241 |
| Wheel Color | Blue |
| Bond Type | Vitrified |
| Recess Type | Two-Side |
| Recess Depth (Inch) | 1/2 |
| Recess Diameter (Inch) | 11-1/2 |
| Opposite Side Recess Diameter (Inch) | 11-1/2 |
| Opposite Side Recess Depth (Inch) | 1/2 |
| Specification | AZ46-I8-V32A |
| Wheel Hardness Rating | Medium |
| Grain Structure | 8 |
