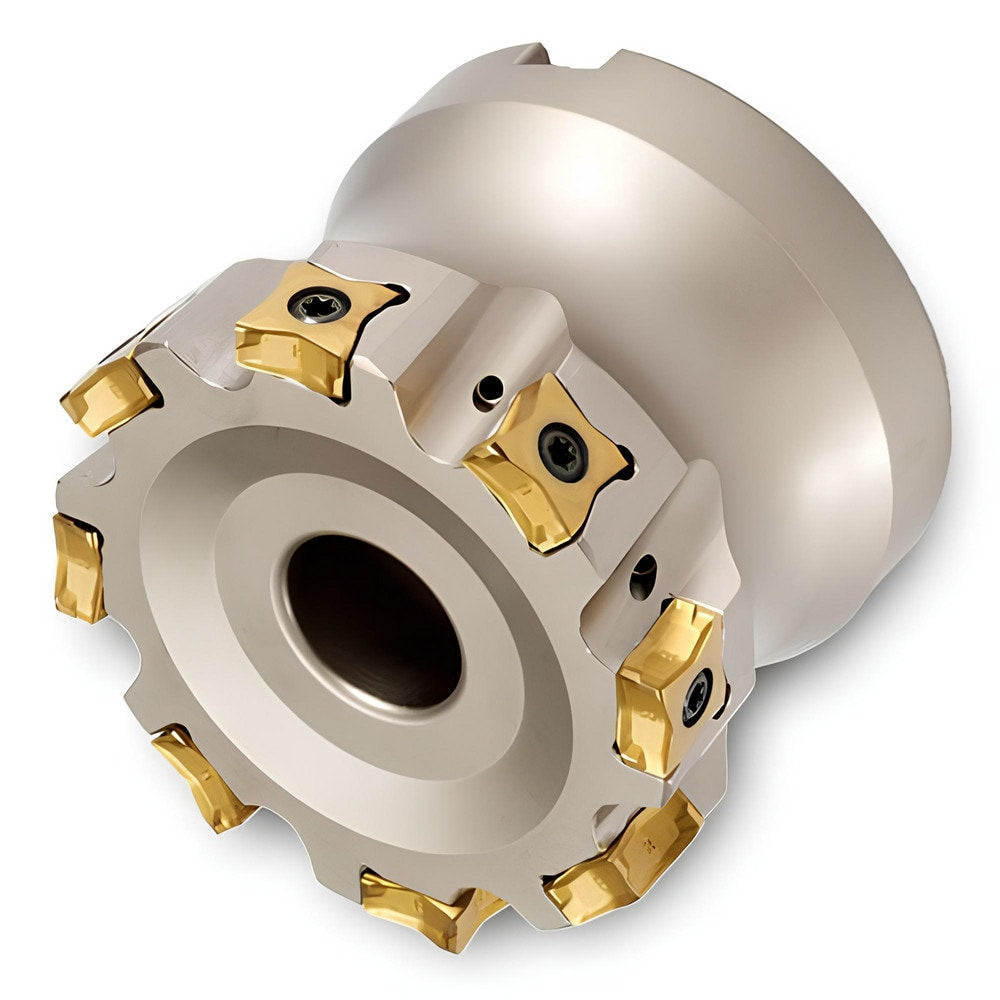

Brand: Ingersoll Cutting Tools / Part #: 3031447
Item #: 96672993
Brand: Ingersoll Cutting Tools
Model #: 3031447
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 6.0000 |
| Minimum Cutting Diameter (Inch) | 6 |
| Minimum Cutting Diameter (mm) | 152.40 |
| Maximum Cutting Diameter (Inch) | 6 |
| Maximum Cutting Diameter (Decimal Inch) | 6.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.3600 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Compatible Insert Size Code | 44 |
| Cutter Style | VJ6K |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 deg |
| Rake | Negative |
| Series | VJ6K |
| Overall Height (Inch) | 2-3/8 |
| Overall Height (Decimal Inch) | 2.3750 |
| Keyway Width (Inch) | 5/8 |
| Keyway Width (Decimal Inch) | 0.6250 |
| Pitch Type | Normal |
| Tool Application | Facing; Shouldering |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | O |
| Cutting Edge Length (Inch) | 23/64 |
| Cutting Edge Length (Decimal Inch) | 0.3600 |
| Complete Insert Compatibility | SGM-44? |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | VJ6K-06R01 |
| Coolant Through | No |
| Number Of Cutter Inserts | 13 |
| Number Of Flutes | 8 |
